Schneider Electric XXA30P2AM12

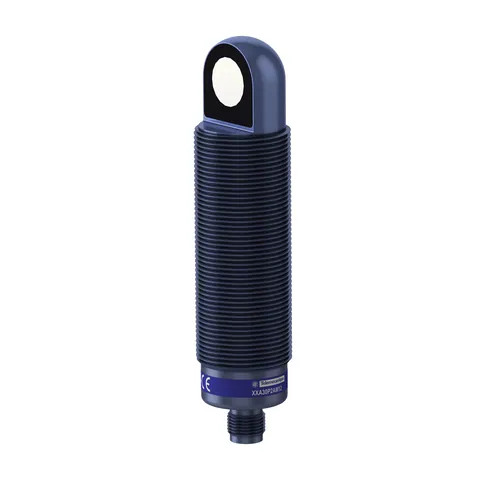

This ultrasonic sensor is part of the XX range, designed for diffuse detection with a 90° head. It offers a sensing range adjustable from 0.155 to 2 m, powered by a rated supply voltage of 12 to 24 V DC, and is equipped with reverse polarity protection. The device is housed in a cylindrical enclosure made of PBT, with front materials including epoxy, rubber, and resin. Its dimensions are 30 mm in width, 129.6 mm in depth, and a height of 30 mm, with a net weight of 0.1 kg.

Featuring a 5-pin M12 male connector, the sensor is rated IP65/IP67 for protection against dust and water ingress. It operates within ambient temperatures ranging from -25 to 70 °C, and can withstand vibrations of +/-1 mm at 10-55 Hz and shocks up to 30 gn. The ultrasonic sensor's transmission frequency is set at 120 kHz, ensuring reliable detection of objects irrespective of their shape, texture, color, or transparency.

This product complies with several standards including EN/IEC 60947-5-2, CSA C22.2 No 14, and UL 508. It is certified by cULus, EAC, RCM, and Ecolab. With a minimum detectable object diameter of 1 mm and a blind zone of 155 mm, the sensor also features a status LED to indicate output and echo states. Additional functionalities include a teach mode and configurator software for setup, enhancing its adaptability for various applications.
