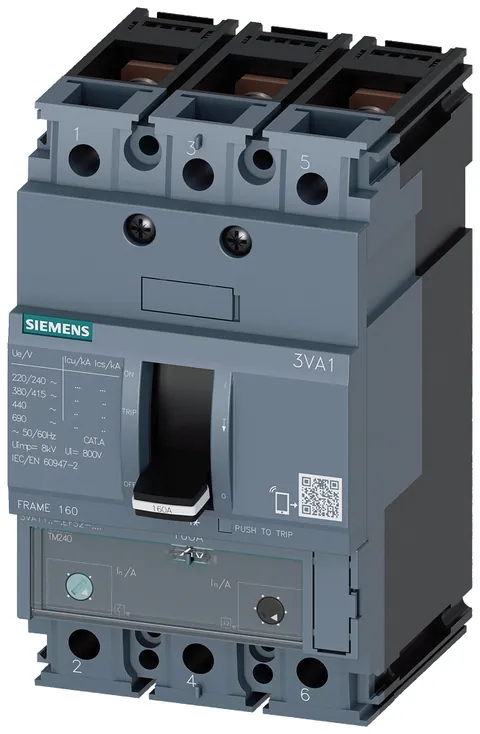

Siemens 3VA1196-5EF32-0AA0

The 3VA11 is a low voltage molded case circuit breaker designed for effective line protection. This device features a thermal-magnetic trip unit and is classified under medium breaking capacity (Class M). It supports a rated current of 16A and delivers a rated short-circuit breaking capacity of 55kA at 415V and 10kA at 690V.

Equipped with the TM240 trip unit, the breaker allows for adjustable overload protection settings between 11A and 16A and short-circuit protection settings ranging from 10 to 20 times the nominal current. The device is suitable for installation on a DIN rail and features a front-side main current circuit connection with a screw connection type.

Additional specifications include an IP40 degree of protection and an adjustment range for undelayed short-circuit release set at 160A. The 3VA11 does not include an integrated earth fault protection or under voltage release, but it does come with a fixed built-in construction and accommodates a nut keeper kit for added connection stability.
