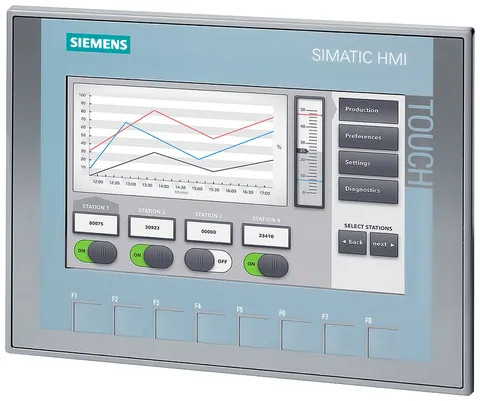

6AG1123-2GB03-2AX0

Additional Information

Part Number

6AG1123-2GB03-2AX0

UPC

804766081859

Tariff Code

8537109170

Country of Origin

DE

ETIM

Group Code : EG000024

Group Description : PLC's

Class Description : Graphic panel

Class Code : EC001412

Version : 7

Specifications

With recipes

true

Built-in depth

39 mm

Type of display

TFT

Screen diagonal

7 inch

Supply voltage DC

19.2 V

Width of the front

214 mm

With colour display

true

Height of the front

158 mm

Number of system buttons

0

With numeric keyboard

true

Number of buttons with LED

0

Number of password levels

50

With message indication

true

Number of HW-interfaces USB

1

Number of online languages

10

Number of pixels, vertical

480

Number of HW-interfaces other

0

Number of interfaces PROFINET

1

Number of HW-interfaces RS-232

0

Number of HW-interfaces RS-422

0

Number of HW-interfaces RS-485

0

Number of pixels, horizontal

800

Operation temperature

-20 °C

With alpha numeric keyboard

true

Voltage type of supply voltage

DC

Number of HW-interfaces Wireless

0

Number of HW-interfaces parallel

0

Supporting protocol for MODBUS

true

Supporting protocol for TCP/IP

true

Number of HW-interfaces serial TTY

0

Number of colours of the display

65536

Supporting protocol for EtherNet/IP

true

Degree of protection (IP), front side

IP65

Number of function buttons, programmable

8

Process default value (input) possible

true

Useful project memory/user memory

10000 kByte

Number of HW-interfaces industrial Ethernet

1

Number of grey-scales/blue-scales of display

0

Supporting protocol for other bus systems

true

Process value representation (output) possible

true

With message system (incl. buffer and confirmation)

true

Country of Origin

DE
