Siemens 6AG1123-2MA03-2AX0

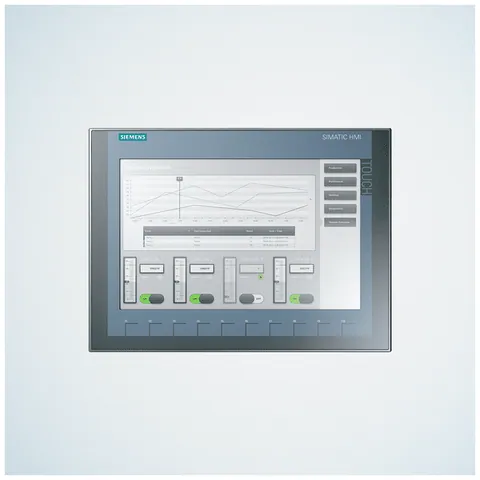

The HMI KTP1200 BASIC DP is designed for operation in environments ranging from -10 to +50 °C. It features a 12-inch TFT display with a resolution of 1280 x 800 pixels, offering 65,536 colors to enhance user interaction.

Equipped with touch and key operation capabilities, this device is configurable using WinCC Basic V13 or STEP 7 Basic V13. The device is based on the model number 6AV2123-2MA03-0AX0 and includes conformal coating for added protection.

With a supply voltage of 19.2 V DC and a maximum power consumption of 13.2 W, the HMI is designed to ensure effective operation in industrial settings. Its robust design includes IP65 protection on the front, making it suitable for various industrial applications.

For connectivity, the HMI KTP1200 BASIC DP supports PROFIBUS protocol and includes one RS-422 and one RS-485 interface, allowing for seamless integration into existing systems. Additional features include a built-in message system, recipe management capabilities, and support for up to 10 online languages.

This model also includes essential security features, such as a user management system supporting up to 50 users and 32 different user rights, ensuring secure access to the system.
