Siemens
6AG1136-6DB00-2CA0

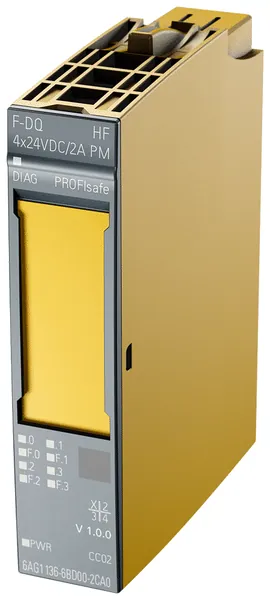

SIPLUS ET 200SP F-DQ 4X24VDC/2A PM HF
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
€364.37
1
Formas de pago:
Un total de 39 Parts In-Stock de 26 Distributors
Condiciones del producto:
Oferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
€443.08
Descripción
ActivoCumple con RoHS
SIPLUS ET 200SP -25 ... +60 DEGREE WITH CONFORMAL COATING BASEDON 6ES7136-6DB00-0CA0 . ELECTRONIC MODULE, 4 F-DQ PROFISAFE, DC 24V/2A, 15 MM WIDTH, UP TO PL E (ISO 13849), UP TO SIL 3 (IEC 61508)Additional Information
- Part Number
- 6AG1136-6DB00-2CA0
- UPC
- 804766224454
- Tariff Code
- 8538903000
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - digital I/O module
- Class Code : EC001599
- Version : 7
Specifications
- Country of Origin
- DE
- Depth
- 58 mm
- Width
- 15 mm
- Height
- 73 mm
- Output current
- 2 A
- System accessory
- true
- Supply voltage DC
- 20.4 V
- Type of output voltage
- DC
- Number of digital inputs
- 0
- Number of digital outputs
- 4
- Rail mounting possible
- true
- SIL according to IEC 61508
- 3
- Type of digital output
- Other
- Number of HW-interfaces USB
- 0
- Degree of protection (IP)
- IP20
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 0
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Digital outputs configurable
- true
- Permitted voltage at output
- 19.2 V
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Suitable for safety functions
- true
- Number of HW-interfaces serial TTY
- 0
- Supporting protocol for PROFIsafe
- true
- Explosion safety category for dust
- None
- Number of HW-interfaces industrial Ethernet
- 0
- Performance level acc. EN ISO 13849-1
- Level e
- Type of electric connection
- Plug-in connection
- Short-circuit protection, outputs available
- true
- Fieldbus connection over separate bus coupler possible
- true
- Explosion safety category for gas
- ATEX gas-ex-protection, Cat. 3G
