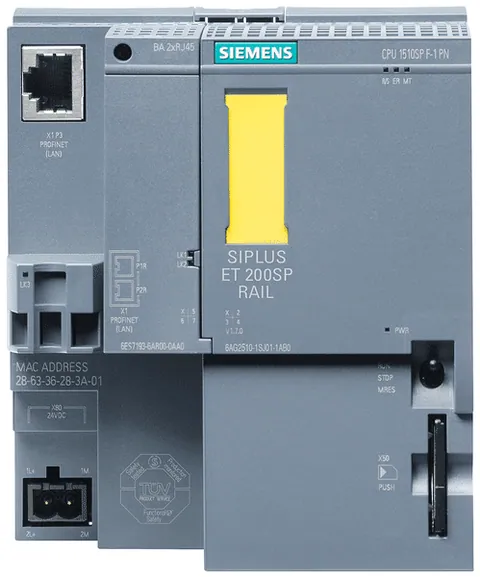

Siemens 6AG2510-1SJ01-1AB0

The ET 200SP CPU 1510 F-1 PN RAIL, based on the designation code 6ES7510-1SJ01-0AB0, is designed for rail mounting and can function effectively within a temperature range of -25 to +55 °C, with the capability of handling up to +70 °C for short durations. This central processing unit includes a program memory of 150 KB and a data memory of 750 KB.

Equipped with a PROFINET IRT interface featuring a 3-port switch, it achieves a bit performance of 72 ns, ensuring efficient data handling. The system requires a SIMATIC Memory Card and a BusAdapter for ports 1 and 2, facilitating enhanced connectivity. Furthermore, it supports various communication protocols including PROFIBUS and PROFINET IO, while being suitable for safety functions as per IEC 61508:3 standards.

With dimensions of 75 mm in depth, 100 mm in width, and 117 mm in height, it has a total of 80 slots available. The device operates on a DC input voltage of 19.2 V with a maximum input current of 0.9 A. Additionally, the unit is designed to accommodate pluggable modules for both digital and analogue I/O, offering versatility in system configuration.
