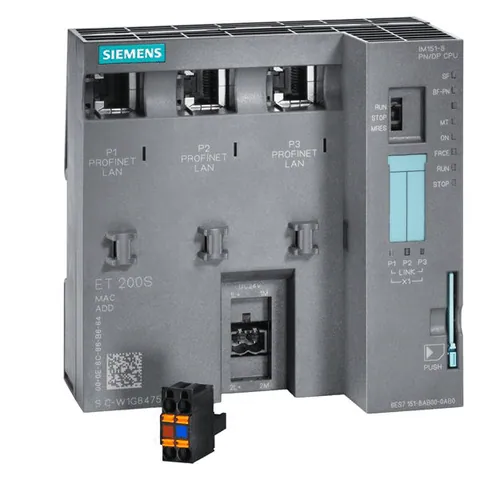

Siemens 6ES7151-8AB01-0AB0

The IM151-8 PN/DP CPU serves as the central processing unit for the ET200S system, offering 192 KB of integrated working memory. It is equipped with an internal PROFINET interface, featuring three RJ45 ports to facilitate connectivity as an IO controller. Notably, this unit does not necessitate a battery MMC for operation.

With a width of 120 mm and a height of 120 mm, the CPU has a compact design suitable for various mounting configurations. The depth measures 75 mm, and it is designed to meet IP20 protection standards, making it suitable for indoor applications. The device supports potential separation and features an integrated current supply, ensuring reliable performance.

The IM151-8 PN/DP CPU operates within a supply voltage range of 20.4 V to 28.8 V DC and is compatible with a minimum inrush current of 1.8 A. It supports a variety of communication protocols, including PROFINET IO Controller and Device functionalities, which can be utilized simultaneously. The device can connect to up to 128 IO devices, with a maximum of 64 devices utilizing IRT (Isochronous Real Time).

Its user-friendly design allows for wall or direct mounting and incorporates a web server for easy monitoring and configuration. The CPU is programmed using STEP 7 V5.5 or higher, allowing for versatile engineering options, and supports multiple programming languages including LAD, FBD, and STL.

For further information, the IM151-8 PN/DP CPU is designated as a part of the SIMATIC family and is suitable for...
