Siemens
6SL3223-0DE22-2AG1

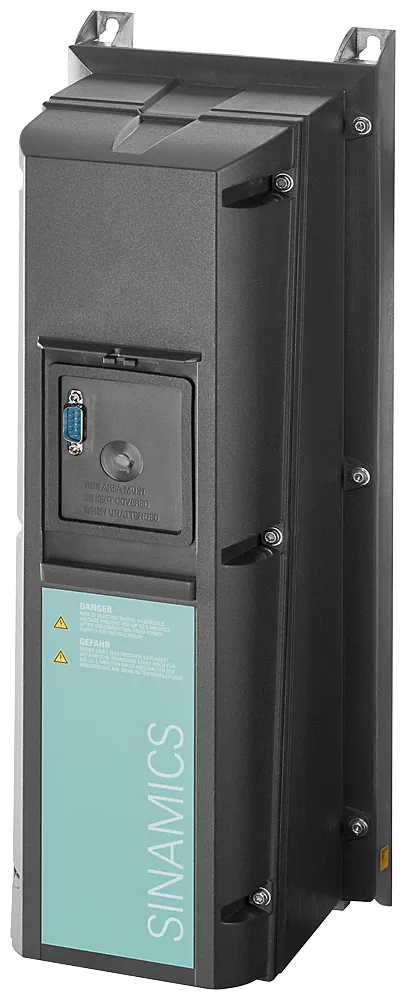

SINAMICS PM230-IP55-FSA-A-400V 2.2KW
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
€314.45
1
Formas de pago:
Un total de 10 Parts In-Stock de 21 Distributors
Condiciones del producto:
Oferta con plazo de entrega del fabricante
Entrega:Bajo pedido
El mejor precio:
€350.40
Descripción
ActivoCumple con RoHS
SINAMICS g120p power module pm230 with built in cl. a filter protection ip55 / ul type12 3AC380-480v +10/-10% 47-63HZ output low overload 2.2KW for 150% 3s.110% 57s.100% 240s ambie. temp -10 to+40 deg c(lo) 460 x 154 x 249 (hxbxt). fsa without control unit and panel approved for cu230p-2 firmware-version v4.3.2Additional Information
- Part Number
- 6SL3223-0DE22-2AG1
- UPC
- 804766344312
- Tariff Code
- 8504409540
- Country of Origin
- GB
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Country of Origin
- GB
- Depth
- 249 mm
- Width
- 154 mm
- Height
- 460 mm
- Mains voltage
- 380 V
- Number of phases input
- 3
- Number of phases output
- 3
- Max. output frequency
- 550 Hz
- Type of converter
- U converter
- Degree of protection (IP)
- IP55
- Nominal output current I2N
- 5.9 A
- Relative symmetric net voltage tolerance
- 10 %
- Application in industrial area permitted
- true
- Relative symmetric net frequency tolerance
- 5 %
- Max. output at linear load at rated output voltage
- 1.5 kW
- Max. output at quadratic load at rated output voltage
- 2.2 kW
