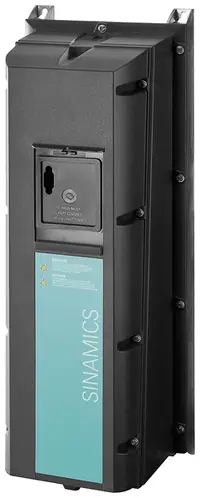

Siemens 6SL3223-0DE27-5BG1

The PM230 Power Module is designed to function within a voltage range of 380-480 V and operates at a frequency of 47-63 Hz. It features a built-in Class B filter and has a protection rating of IP55/UL Type 12, ensuring reliable performance in various industrial settings. The module's low overload capability allows for 7.5 kW output at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds.

With dimensions of 540 mm in height, 180 mm in width, and 249 mm in depth, the unit is compact yet effective, operating optimally in ambient temperatures ranging from -10 to +40 °C. It supports three-phase input and output with a maximum output frequency of 550 Hz. Notably, the PM230 does not require a control unit or operating unit, and is approved for use with CU230P-2 firmware version V4.3.2 or higher. The product is permitted for application in both industrial and commercial settings, accommodating a relative symmetric net voltage tolerance of -10% and a frequency tolerance of 5%.
