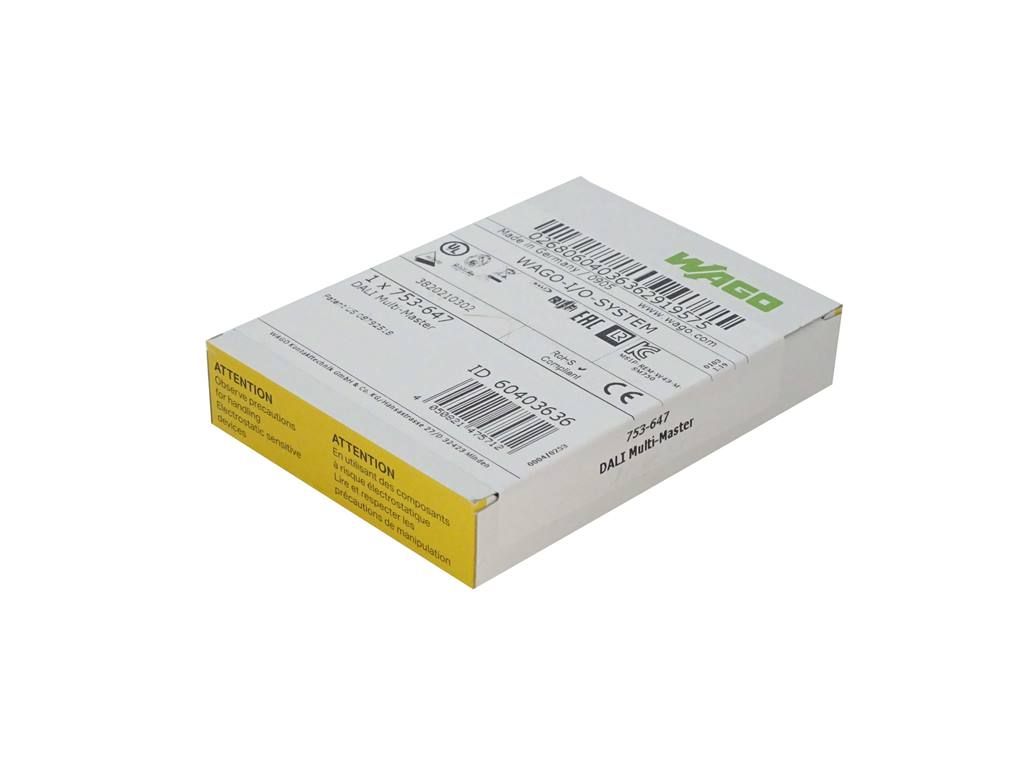

Wago
753-647
DALI Multi-Master
- Consigue plazos de pago de hasta 90 días de 500+ proveedores.
- Descuentos de reventa de hasta el 40%!
€216.75
1
Formas de pago:
Un total de 139 Parts In-Stock de 22 Distributors
Condiciones del producto:
Additional Information
- Part Number
- 753-647
- UPC
- 4050821475712
- Tariff Code
- 85389099990
Environmental Requirements
- Ambient temperature (operation)
- 0 … +55 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Protection type
- IP20
- Pollution degree
- 2 per IEC 61131-2
- Operating altitude
- 0 … 2000 m / 0 … 6562 ft
- Mounting position
- Horizontal (standing/lying); vertical
- Relative humidity (without condensation)
- 95 %
- Vibration resistance
- 4g per IEC 60068-2-6
- Shock resistance
- 15g per IEC 60068-2-27
- EMC immunity to interference
- Per EN 61000-6-2*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply
- EMC emission of interference
- Per EN 61000-6-3*, *only in connection with 753-620 DC/DC Converter or 787-1007 Power Supply
- Exposure to pollutants
- Per IEC 60068-2-42 and IEC 60068-2-43
- Permissible H2S contaminant concentration at a relative humidity 75 %
- 10 ppm
- Permissible SO2 contaminant concentration at a relative humidity 75 %
- 25 ppm
Connection Data
- Connection technology: inputs/outputs
- 8 x CAGE CLAMP®
- Connection type 1
- Inputs/outputs
- Solid conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Fine-stranded conductor
- 0.08 … 2.5 mm² / 28 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
Physical Data
- Width
- 12 mm / 0.472 inches
- Height
- 100 mm / 3.937 inches
- Depth
- 69 mm / 2.717 inches
- Depth from upper-edge of DIN-rail
- 61.8 mm / 2.433 inches
Material Data
- Housing material
- Polycarbonate; polyamide 6.6
- Fire load
- 1.046 MJ
- Weight
- 61.400 g
- Conformity marking
- CE
Technical Data
- Device specification
- DALI-2 Specification: DIN IEC 62386 only in conjunction with 753-620 or 787-2857 Power Supplies
- Device-specific
- Current consumption from DALI bus with alternative supply via DALI bus: 10 mA
- Topology
- Number of control gears/control devices (DALI): 64 control gears + 64 control devices (addressable)
- Transmission channel
- 1
- Data width
- 24-byte data
- Guaranteed supply current
- 200 mA
- Supply current (max.)
- 250 mA
- Power supply
- DALI: 18 V (external)
- Commissioning
- Via WAGO-I/O-CHECK
- Supply voltage (system)
- 5 VDC; via data contacts
- Current consumption (5 V system supply)
- 85 mA
- Isolation
- 2100 VDC DALI bus/local bus
- Indicators
- LED (A-H) green/yellow/red: Easy Mode, TxD, Availability, 1- or 2-Button Operation, Full Mode, RxD, Power On, Latching Function
Mechanical Data
- Mounting type
- DIN-35 rail
- Pluggable connector
- Pluggable
Specifications
- Product Group Code
- 0015
Commercial Data
- Packaging type
- Box
- Country of origin
- DE
- GTIN
- 4050821475712
- Customs tariff number
- 85389099990
Notes
- Note
- The 753 Series Plug is included with delivery.
