Weidmuller 1330780000

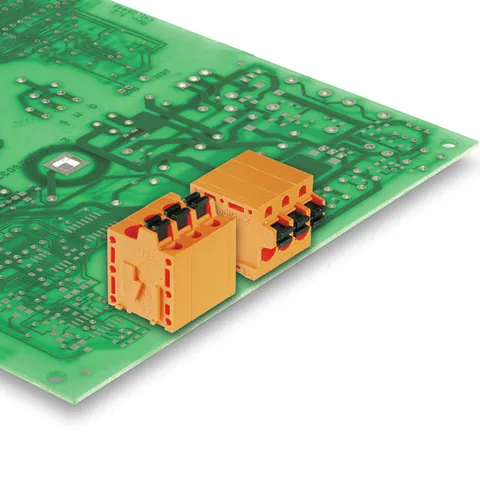

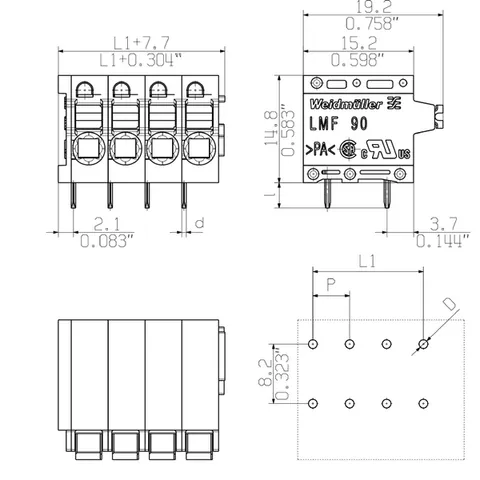

The LMF 5.08/08/90 3.5SN OR BX is a printed circuit board terminal featuring a 5.08 mm pitch and a 90° conductor outlet direction. This terminal supports a maximum clamping range of 2.5 mm² and is designed for use with wires ranging from AWG 24 to AWG 12. The solder pin length is precisely 3.5 mm.

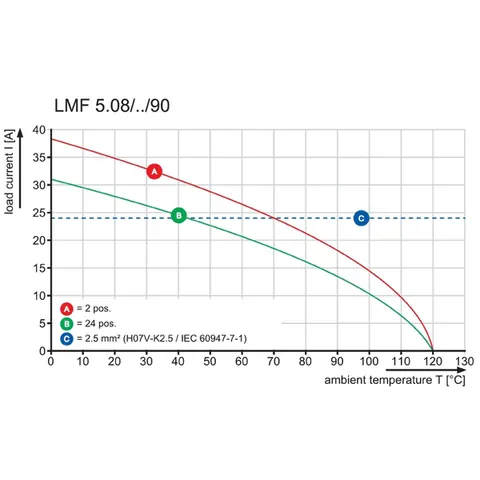

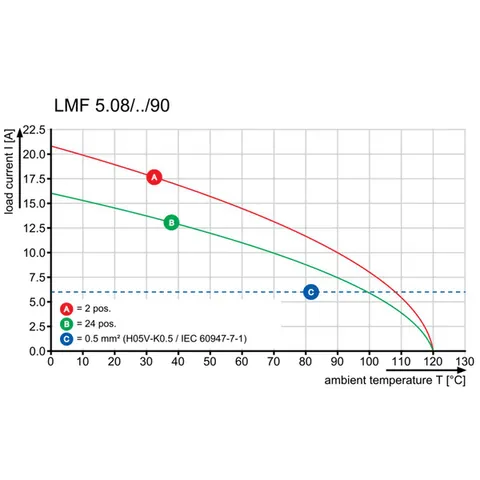

Constructed from high-quality materials, the insulating component is made of Wemid (PA), and the contact material is tinned copper alloy (CuSn). The orange color coding aids in identification, while the robust design ensures compliance with multiple industry standards, including UL 1059 and IEC 60664-1. The rated voltage for this terminal is up to 400 V in specific conditions, with a rated current capacity of 24 A at 20°C.

This component is packaged in a box and is suitable for applications where reliable and secure wire connections are critical. It is tested for operational temperatures ranging from -50°C to 120°C, ensuring functionality in diverse environments. The terminal also achieves a high insulation strength of ≥ 108 Ω and adheres to the IPC-A-610 Class 2 standards for quality assurance.
