Weidmuller 1825680000

This printed circuit board terminal, identified by the designation code LSF-SMT 3.50/06/180 3.5SN BK TU, is designed for efficient connectivity with a pitch of 3.5 mm and a solder pin length of 3.5 mm. It supports a maximum clamping range of 1.5 mm², accommodating wire connection cross sections from AWG 28 to AWG 14.

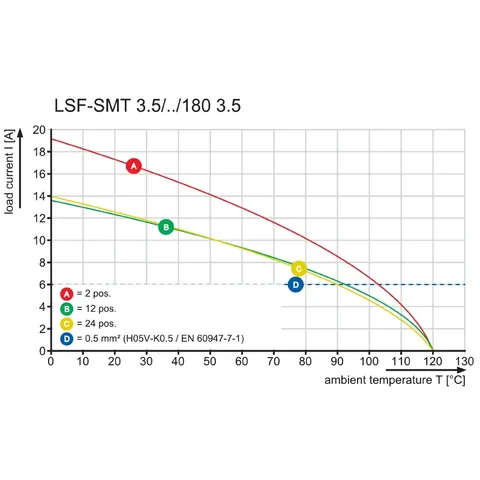

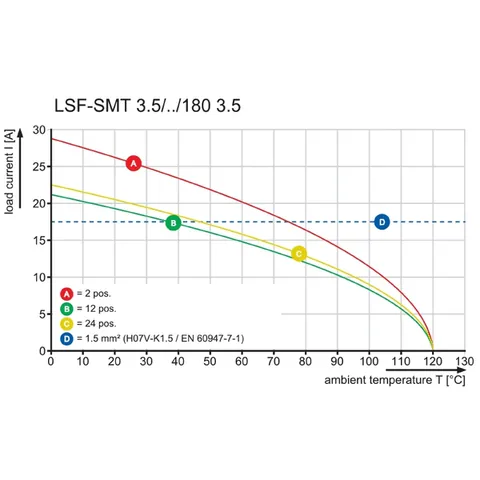

Constructed from LCP GF insulating material, this terminal is black in color, with operational elements made from PPA GF. It is rated for an operating temperature range from -50 °C to 120 °C and meets various international standards, including IEC 60664-1 and IEC 61984. The rated voltage is 300 V, with a rated current capacity of 12 A for group B and 10 A for group D, according to UL 1059 standards.

With a compact design, the terminal measures 21.7 mm in width, 17.5 mm in height, and 7.8 mm in depth, resulting in a net weight of 4.52 g. It is suitable for PCB mounting via THT/THR solder connections and features a conductor outlet direction of 180°. Compliance with touch-safe protection standards ensures safety during operation.
