Weidmuller 1883461000

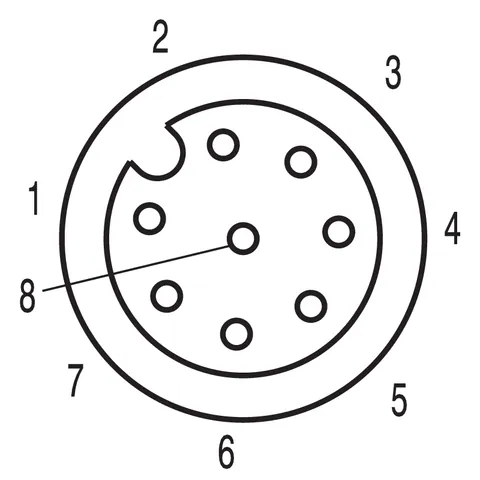

This M12 connector socket features 8 poles and a cable length of 10 meters, suitable for sensor and actuator connections. The connector conforms to IEC 61076-2-101 standards and is designed in an angled configuration. The housing is made from PUR material, while the threaded ring is composed of nickel-plated brass, ensuring durability and reliability in various environments.

The connector maintains a protection degree of IP67 when fully screwed in, allowing for use in demanding conditions. It operates effectively within a temperature range of -25°C to +80°C and is rated for a voltage of 30V and a current of 2A. The contact surface is gold-plated, enhancing conductivity and longevity.

With a core cross-section of 0.25 mm² and an outside diameter of 5.9 mm, the cable is not shielded, and its sheath is black PUR. The connector supports a bending radius of at least 5 times the cable diameter when stationary and 10 times when in motion. It is also rated for at least 100 plugging cycles and is suitable for cable carriers.
