Weidmuller 1934250000

The printed circuit board terminal is designed with a pitch of 5.08 mm and accommodates 2 poles. It has a 90° connection orientation and a solder pin length of 3.2 mm. The connection method utilizes a clamping yoke, which allows for a maximum clamping range of 6 mm².

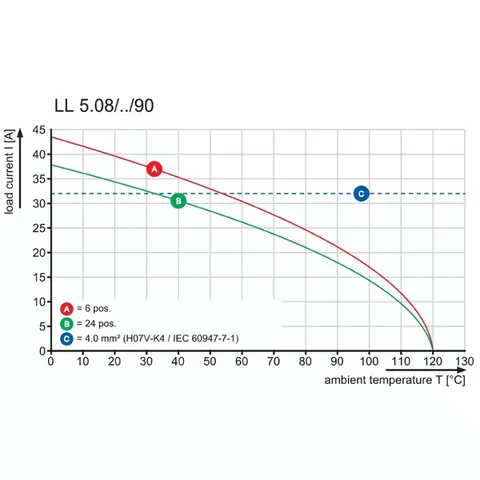

Rated for a maximum current of 20 A at 300 V as per UL 1059 standards, this component also complies with IEC 60664-1 and IEC 61984 standards, ensuring reliability in various applications. It supports wire cross-sections ranging from AWG 26 to AWG 12. The terminal's construction includes a Wemid (PA) insulating material, finished in orange, with a Comparative Tracking Index (CTI) of ≥ 600 and an insulation strength of ≥ 108 Ω.

With a height of 20.3 mm and a depth of 11 mm, it is designed for through-hole mounting on PCBs. The touch-safe rating is IP 20, providing protection against accidental contact. The terminal also features a minimum storage temperature of -25 °C and a maximum operating temperature of 120 °C, making it suitable for a variety of environments.

For installation, the minimum stripping length required is 6 mm, and the tightening torque range for the clamping screw is between 0.5 Nm and 0.6 Nm. The terminal is packaged in a box with dimensions of 50 mm x 75 mm x 115 mm.

Designation Code: LL 5.08/02/90 3.2SN OR BX.
