ABB 1SDA067056R1XT2N 160 Ekip LS/I In=63A 3p F F

Name: XT2N 160 Ekip LS/I In=63A 3p F F
Brand: ABB
SKU: 63a37b63ca04b4f2592d0947
Price: 190.00 EUR
Availability: InStock

1 / 3

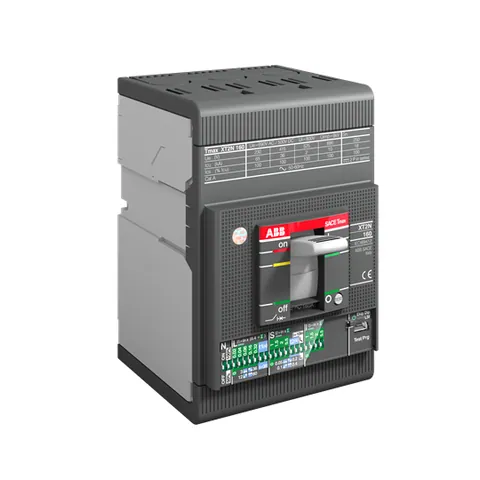

Reference Image - Not actual item!

Offer Description

XT2N 160 Ekip LS/I In=63A 3p F F

Product Description

C.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 63 A

Product Details

Brand: ABB
Part Number: 1SDA067056R1
EAN: 39120000
UNSPSC: 39120000

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Power circuit-breaker for trafo/generator/installation protection

Class Code : EC000228

Version : 7

≈

$207.10

excl. tax

Supplier Price

€190.00

Payment methods:

Offer details

Best offer from:: Trusted Automa.Net Supplier
Availability:: 2 pcs.
In-Stock
Updated at: 30-06-2025
Estimated Delivery:: On Request
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Are you a Supplier?

Join 650 suppliers, sell to 3500+ verified buyers.

Check other offers

Country	Conditions	Qty	Price
PL	New Factory Sealed	1	Ask Supplier

New Factory Sealed

Ask Supplier

A total of 3 Parts In-Stock from 2 Distributors

Policies and Information

Return & Refund Policies

14 days for return

Secure Payment Process

Available Offers

(1)

In-Stock offers

ABB

Available:: 1 pc.
In-Stock
Updated at: 13-07-2025

Offer from:: Trusted Automa.Net Supplier
Estimated Delivery:: On Request
Warranty:: 12 months

Additional Information

Circuit Breaker Type to be Associated: Power Distribution
Connecting Capacity Main Circuit: Busbar 32.5..100 mm²
Current Type: AC
Electrical Durability: 120 cycles per hour8000 cycle
Mechanical Durability: 240 cycles per hour25000 cycle
Number of Poles: 3
Opening Time: CB with SOR 15 msCB with UVR 15 ms
Order Multiple: 1 piece
Power Loss: at Rated Operating Conditions per Pole 1.7 W
Product Main Type: SACE Tmax XT
Product Name: Moulded Case Circuit Breaker
Product Type: Automatic Circuit Breaker
Rated Current (In): 63 A
Rated Frequency (f): 50 / 60 Hz
Rated Voltage (Ur): 690 V
Rated Impulse Withstand Voltage (Uimp): 8 kV
Rated Insulation Voltage (Ui): 1000 V
Rated Operational Voltage: 690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA
Rated Uninterrupted Current (Iu): 160 A
Recommended Screw Driver: Main Circuit M6
Release: Ekip LS/I
Release Type: EL
Short-Circuit Performance Level: N
Standards: IEC
Sub-type: XT2
Terminal Connection Type: Front
Terminal Type: Bolt
Tightening Torque: 6 N·m
Version: F
CAD Dimensional Drawing: 1SDH002230A1001

Dimensions

Product Net Width: 90 mm
Product Net Height: 130 mm
Product Net Depth / Length: 82.5 mm
Product Net Weight: 1.4 kg

ABB EcoSolutions

ABB EcoSolutions: Yes

Eco Transparency

Environmental Product Declaration - EPD: 9AKK108468A1897

Classifications

ETIM 9: EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification Code: Q
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
EClass: V11.1 : 27370409

Environmental

Environmental Information: 9AKK107991A8215 9AKK108467A6707
REACH Declaration: 9AKK108466A1425
RoHS Information: 9AKK108466A1424
RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP: e9538100-5f4d-4e14-bda3-68a38dd9536e Italy (IT)
Simplified SCIP: c7d18baf-942b-4b78-ae49-0632621e046f Finland (FI)9f9d759e-4705-4d5f-9675-a000f506fc88 Netherlands (NL)13d15eb4-e731-4159-8727-a5128baad645 Sweden (SE)e10e3cf9-e4cb-4ba5-b2ba-e32357969590 Germany (DE)6a018556-1af2-46d1-be0c-e1920257b820 France (FR)a730426f-7169-4072-97fa-898d4ade89b5 Netherlands (NL)93bc5631-9213-454c-8602-64103f0013dc Spain (ES)5423d5c2-3a74-4aaa-837d-10a776114857 Netherlands (NL)72b3d328-c844-4e73-8290-1130047bc3aa Germany (DE)679b26f6-4b92-485b-a3f8-ec954757e96f Poland (PL)6613a1a8-2685-4213-95a3-0d87b7595cb5 Netherlands (NL)57d47c68-6390-4c3d-90d6-73149a4b8c8a Netherlands (NL)7bf12ca9-f0d6-4ae1-8204-8deac95dee0a Estonia (EE)5a3d8285-3916-4060-90e3-e978fd065932 Greece (GR)c6dadd79-1abd-40c9-8f7d-e8f509e1fc20 Portugal (PT)88b820d2-e34f-4903-8686-07f47b98c13d Bulgaria (BG)e5134581-f3e7-4c5f-9d2d-2590838c9c7b Sweden (SE)392b53c5-f7f2-40a4-8b81-8c1ec0131e0d Poland (PL)e8bfc112-6ca5-4bfc-8844-e3ee850cde9c Germany (DE)aea5accc-b97e-44a9-a065-5d73da887de7 Denmark (DK)8310868e-f6a2-475c-a3ea-a95cdbf091e5 Germany (DE)3a38b715-7954-4d07-958c-da2ea89a7c91 Croatia (HR)e09c8a16-7c50-4ddc-a6ae-ced76c5b253c Czech Republic (CZ)8e7e51bc-aa53-4558-8b1f-553f05fcd2e1 Poland (PL)95287f09-c2b1-4bd6-9a37-d30e0e0d50cf France (FR)125cc667-bdaf-417f-9743-29d29f1e367f Norway (NO)

Circular Value

Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 58.1 %
Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
End of Life Instructions: 9AKK108468A2349
Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA: 9AKK108467A8326
