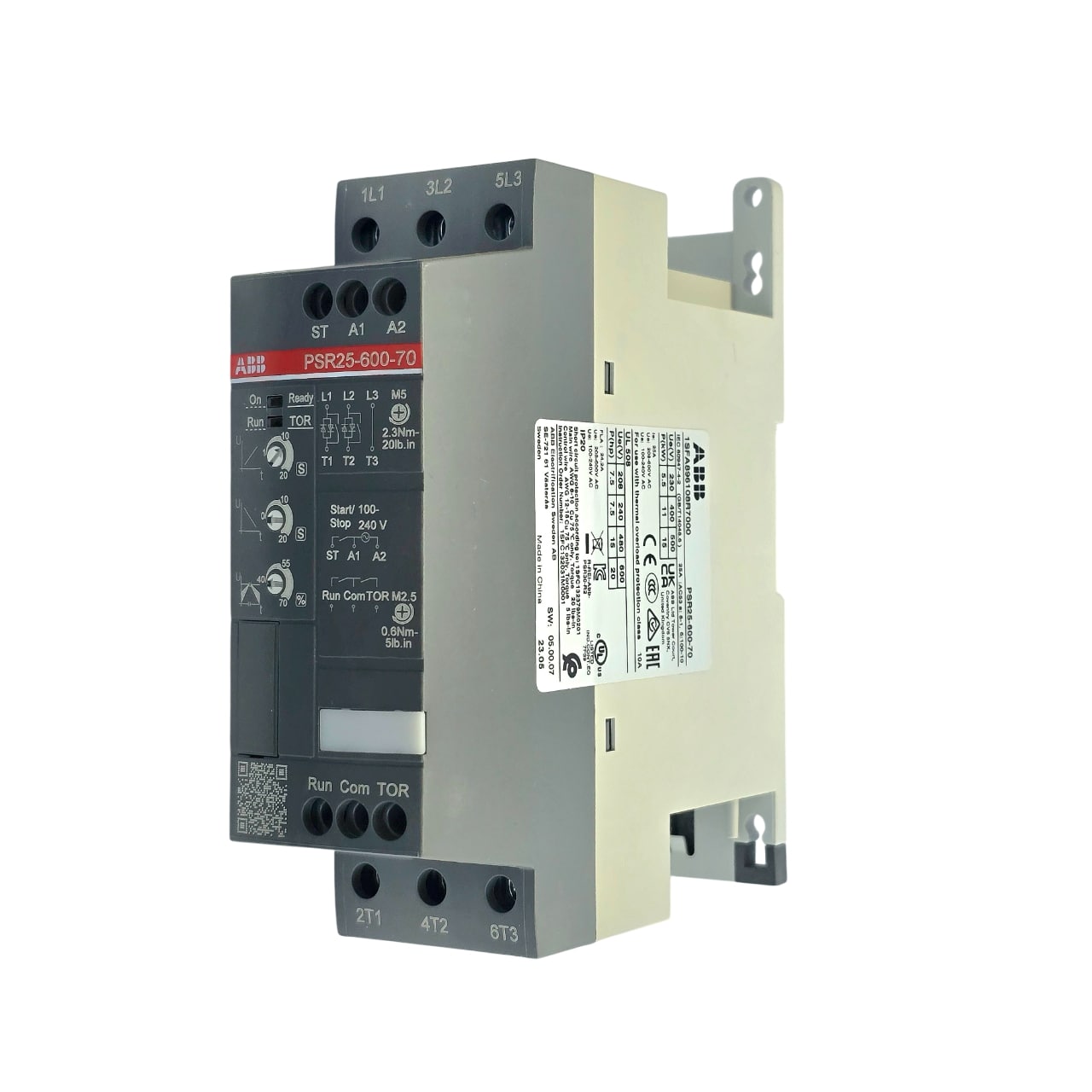

ABB 1SFA896108R7000PSR25-600-70 Softstarter - 25 A - 208 ... 600 V AC
1 / 4
Reference Image - Not actual item!
Reference Image - Not actual item!
Reference Image - Not actual item!
Reference Image - Not actual item!
Offer Description
ABB SOFTSTARTER PSR25-600-70 FOR MAX 600V MAIN VOLTAGE AND 100-240V 50/60HZ CONTROL SUPPLY VOLTAGE | ✓ FREE WORLDWIDE SHIPPING ✓ 2 YEAR WARRANTY ✓ OVER 300.000 PRODUCTS IN STOCK
Product Description
The softstarter PSR25-600-70 has a rated maximum operational current of 25 A with an operating voltage span from 208...600 V AC. The rated control voltage is between 100...240 V AC at 50/60 Hz. PSR features a two-phase control soft start and stop through a voltage ramp. It has built-in bypass for easy installation and energy saving. A RUN and a TOR signal is available from a relay output in NO (normally open state). The start/stop ramp and time is easy to set by three potentiometers on the front. PSR is often used in combination with a manual motor starter (MMS) from ABB, so mechanical connection kits are available. Another popular option is Fieldbus communication, which can be enabled by an external adaptor and a Fieldbus plug. The PSR range is our most compact softstarters with basic functionality and values. They are suitable for small three-phase motors with nominal currents from 3...105 A and can manage up to 100 starts per hour. Common applications are, for example, pumps, fans, compressors, and conveyors.
Product Details
- Brand
- ABB
- Part Number
- 1SFA896108R7000
- EAN
- 39121521
- UNSPSC
- 39121521
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Soft starter
- Class Code : EC000640
- Version : 7
≈
$176.96
excl. taxSupplier Price
€162.35
€191.00
Shipping from:
€80.00
Offer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 2 pcs.In-StockUpdated at: 18-07-2025
- Warranty:
- 24 months
- Estimated Delivery:
- 21 July to United States
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Are you a Supplier?
Join 650 suppliers, sell to 3500+ verified buyers.
Check other offers
| Country | Conditions | Qty | Price |
|---|---|---|---|
| New Factory Sealed | 2 | ≈ $187.48 |
 | New Factory Sealed | 2 | ≈ $197.78 |
 | New Factory Sealed | 3 | $503.95 |
New Factory Sealed
≈
$187.48
New Factory Sealed
≈
$197.78
New Factory Sealed
$503.95
A total of 9 Parts In-Stock from 4 Distributors
Policies and Information
Shipping Information
Return & Refund Policies
14 days for return
Secure Payment Process
Warranty Policies
Available Offers
(3)ABB
- Available:
- 2 pcs.In-StockUpdated at: 18-07-2025
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 24 July - 07 August to United States
- Warranty:
- 24 months
≈
$197.78
excl. taxSupplier Price
€181.45
Shipping from:
€120.00
ABB
- Available:
- 3 pcs.In-StockUpdated at: 17-07-2025
- Offer from:
- Trusted Automa.Net Supplier
- Estimated Delivery:
- 25-30 July to United States
- Warranty:
- 12 months
$503.95
excl. taxDimensions
- Product Net Width
- 128 mm
- Product Net Height
- 160 mm
- Product Net Depth / Length
- 45 mm
- Product Net Weight
- 0.6 kg
Technical
- Rated Operational Voltage
- 208 ... 600 V AC
- Rated Control Supply Voltage (Us)
- 100 ... 240 V AC
- Rated Control Circuit Voltage (Uc)
- 24 V DC
- Rated Frequency (f)
- 50/60 HzMain Circuit 50 / 60 Hz
- Rated Operational Power - In-Line Connection (Pe)
- (230 V) 5.5 kW(400 V) 11 kW(500 V) 15 kW
- Rated Operational Current - In-Line Connection (Ie)
- 25 A
- Service Factor Percentage
- 100 %
- Overload Protection
- Recommended MS132 20 ... 25
- Integrated Electronic Overload
- No
- Adjustable Rated Motor Current Ie
- No
- Starting Capacity at Maximum Rated Current Ie
- 4xIe for 6s
- Ramp Time
- 0 ... 20 second [unit of time]1 ... 10 second [unit of time]
- Initial Voltage During Start
- 40 ... 70 %
- Step Down Voltage Special Ramp
- 100 ... 60 %
- Current Limit Function
- No
- Switch for Inside Delta Connection
- No
- Run Signal Relay
- Yes
- By-pass Signal Relay
- Yes
- Fault Signal Relay
- No
- Overload Signal Relay
- No
- Signal Indication Completed Start Ramp (LED)
- Green
- Signal Indication Ready to Start/Standby ON (LED)
- Green
- Signal Indication Running R (LED)
- Green
- Signal Indication Ramping Up/Down (LED)
- Green
- Number of Starts Per Hour at 3.5*Ie for 7 sec. 50% ON Time 50% OFF Time
- 10
- Communication
- FiledBusPlug(Optional)
- Degree of Protection
- IP20
- Terminal Type
- Screw Terminals
- Connecting Capacity Main Circuit
- Rigid 1/2 x 2.5 ... 10 mm²
- Connecting Capacity Control Circuit
- 1 x 0.75 ... 2.52 x 0.75 ... 2.5 mm²Rigid 1 x 0.75 ... 2.5 mm²Rigid 2 x 0.75 ... 1.5 mm²
- Connecting Capacity Supply Circuit
- Rigid 1 x 0.75 ... 2.5 mm²
- Tightening Torque
- Control Circuit 0.6 N·mMain Circuit 2.3 N·mSupply Circuit 0.6 N·m
- Product Main Type
- PSR25
- Function
- Soft start with voltage rampSoft stop with voltage ramp
Classifications
- Object Classification Code
- Q
- ETIM 9
- EC000640 - Soft starter
- EClass
- V11.0 : 27370907
- IDEA Granular Category Code (IGCC)
- 4740 >> Soft starter
Environmental
- Ambient Air Temperature
- Operation -25 ... +60 °CStorage -40 ... +70 °C
- Degree of Protection
- IP20
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical UL/CSA
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Tightening Torque UL/CSA
- Control Circuit 5.3 in·lbMain Circuit 20.4Supply Circuit 5.3 in·lb
Ordering
- Minimum Order Quantity
- 1 piece
- Customs Tariff Number
- 85371091
