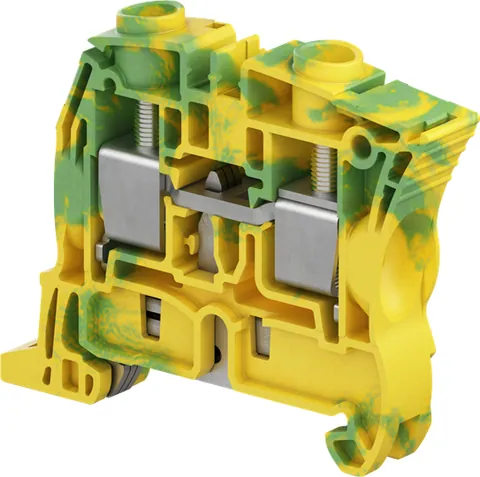

ABB 1SNK510150R0000ZS16-PE Screw Clamp Terminal Block - Ground - Green/Yellow
1 / 2
Reference Image - Not actual item!
Offer Description
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of IEC 60947-7-2 terminal block standard, - Secured snap on or remove from the rail, - PE.N function available by combining ZS16-PE with ZS16-BL and 2 poles jumper bar JB10-2.ZS16-PE Screw Clamp Terminal Block - Ground - Green/Yellow ABB 1SNK510150R0000
Product Description
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact: - Rail contact non operator dependent, - Performances above the requirements of IEC 60947-7-2 terminal block standard, - Secured snap on or remove from the rail, - PE.N function available by combining ZS16-PE with ZS16-BL and 2 poles jumper bar JB10-2.
Product Details
- Brand
- ABB
- Part Number
- 1SNK510150R0000
- UPC
- 34725951015040
$102.50
excl. taxOffer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 3 pcs.In-StockUpdated at: 18-07-2025
- Warranty:
- 12 months
- Estimated Delivery:
- 25-30 July to United States
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Are you a Supplier?
Join 650 suppliers, sell to 3500+ verified buyers.
Policies and Information
Shipping Information
Return & Refund Policies
14 days for return
Secure Payment Process
Warranty Policies
Dimensions
- Product Net Width
- 10 mm
- Product Net Height
- 60.6 mm
- Product Net Length
- 48.8 mm
- Product Net Depth / Length
- 48.8 mm
- Product Net Weight
- 32 g
Technical
- Rated Cross-Section
- 16 mm²
- Spacing
- 10 mm
- Connection Type
- Screw Clamp
- Function
- Ground
- Number of Levels
- 1
- Connecting Capacity Main Circuit
- Screw Clamp / Flexible 1x 0.5 ... 16 mm²Screw Clamp / Rigid 1x 0.5 ... 16 mm²Screw Clamp / With Insulated Ferrrule 1x 0.5 ... 10 mm²Screw Clamp / Without Insulated Ferrule 1x 0.5 ... 16 mm²
- Gauge Type
- A6-B6
- Rated Short-time Withstand Current (Icw)
- for 1 s 1920 A
- Rated Impulse Withstand Voltage (Uimp)
- 8000 V
- Dielectric Test Voltage
- 2200 V
- Pollution Degree
- 3
- Degree of Protection
- acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
- Insulation Material
- Polyamide
- Mounting on DIN Rail
- TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
- Wire Stripping Length
- 13.5 mm
- Recommended Screw Driver
- 5.5 mm
Container Information
- Package Level 1 Units
- 20 piece
- Package Level 1 Width
- 101 mm
- Package Level 1 Depth / Length
- 120 mm
- Package Level 1 Height
- 50 mm
- Package Level 1 Gross Weight
- 0.64 kg
- Package Level 1 EAN
- 3472595101504
- Package Level 2 Units
- 160 piece
- Package Level 2 Width
- 200 mm
- Package Level 2 Depth / Length
- 300 mm
- Package Level 2 Height
- 200 mm
- Package Level 2 Gross Weight
- 5.12 kg
- Package Level 3 Units
- 15360 piece
Classifications
- Object Classification Code
- X
- ETIM 4
- EC000901 - Ground terminal block
- ETIM 5
- EC000901 - Ground terminal block
- ETIM 6
- EC000901 - Ground terminal block
Environmental
- Ambient Air Temperature
- Operation -55 ... +110 °CStorage -55 ... +110 °C
- Resistance to Vibrations acc. to IEC 60068-2-6
- Compliant
- RoHS Status
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
Technical UL/CSA
- Connecting Capacity Main Circuit UL/CSA
- Screw Clamp / Flexible 1x 24 ... 4 AWGScrew Clamp / Rigid 1x 24 ... 4 AWGScrew Clamp / With Insulated Ferrrule 1x 24 ... 8 AWGScrew Clamp / Without Insulated Ferrule 1x 24 ... 4 AWG
- Connecting Capacity UL/CSA
- Stranded 4 AWG
- Flammability According to UL94
- V-0
Ordering
- Color
- Green-Yellow
- Minimum Order Quantity
- 20 piece
- Customs Tariff Number
- 85369010
