ABB 2CDS251001R0044S201-C4 Miniature Circuit Breaker - 1P - C - 4 A

Name: S201-C4 Miniature Circuit Breaker - 1P - C - 4 A
Brand: ABB
SKU: 63a37acbca04b4f2592c52d9
Price: 54.00 GBP
Availability: InStock

1 / 5

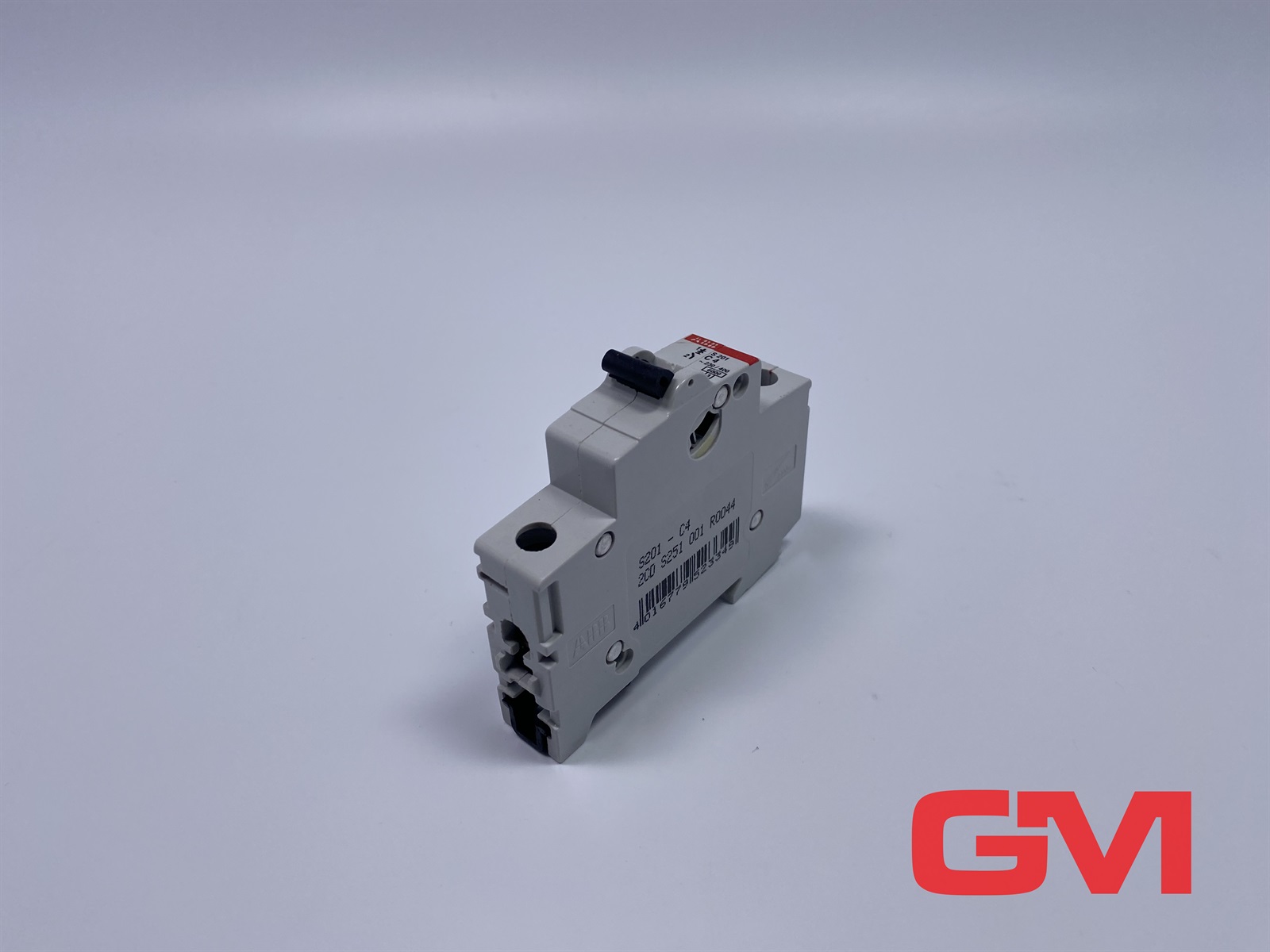

Reference Image - Not actual item!

Product Description

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Product Details

Brand: ABB
Country of Origin: DE
Part Number: 2CDS251001R0044
Tariff Code: 85362010
EAN: 4016779523349
UNSPSC: 39121603

ETIM

Group Code : EG000020

Group Description : Circuit breakers and fuses

Class Description : Miniature circuit breaker (MCB)

Class Code : EC000042

Version : 7

≈

$68.58

excl. tax

Supplier Price

£54.00

Shipping from:

£75.00

Offer details

Best offer from:: Trusted Automa.Net Supplier
Availability:: 1 pc.
In-Stock
Updated at: 17-07-2025
Warranty:: 12 months
Estimated Delivery:: 28-31 July to United States
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Are you a Supplier?

Join 650 suppliers, sell to 3500+ verified buyers.

Policies and Information

Return & Refund Policies

14 days for return

Secure Payment Process

Warranty Policies

Installation

Instructions and Manuals: 2CDS207104P0002

Dimensions

Width in Number of Modular Spacings: 1
Product Net Width: 17.5 mm
Product Net Height: 88 mm
Product Net Depth / Length: 69 mm
Product Net Weight: 0.125 kg
Pole Net Weight: 0.125 kg
Built-In Depth (t2): 69 mm
Dimension Diagram: 2CDC022007F0010

ABB EcoSolutions

ABB EcoSolutions: Yes

Technical

Standards: IEC/EN 60898-1IEC/EN 60947-2UL 1077
Tripping Characteristic: C
Rated Operational Voltage: acc. to IEC 60898-1 230 / 400 V ACacc. to IEC 60947-2 230 V AC
Operational Voltage: Maximum (Incl. Tolerance) 253 V ACMaximum (Incl. Tolerance) 72 V DCMinimum 12 V ACMinimum 12 V DC
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp): 4 kVat 2000 m 5 kVat Sea Level 6.2 kV
Dielectric Test Voltage: 50/60 Hz, 1 min: 2 kV
Input Voltage Type: AC/DC
Rated Current (In): 4 A
Rated Short-Circuit Capacity: (AC) 6 kA(DC) 6 kA(230 / 400 V AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu): (133 V AC) 20 kA(230 V AC) 10 kA(24 V DC) 20 kA(60 V DC) 10 kA
Rated Conditional Short-Circuit Current (Inc): (230 V) 10 kA(400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics): (133 V AC) 15 kA(230 V AC) 7.5 kA
Frequency (f): 50 Hz
Rated Frequency (f): 50 / 60 Hz
Power Loss: 1.8 Wat Rated Operating Conditions per Pole 1.8 W
Power Supply Connection: Arbitrary
Contact Position Indication: Red ON / Green OFF
Energy Limiting Class: 3
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Number of Poles: 1
Number of Protected Poles: 1
Overvoltage Category: III
Tightening Torque: 2.8 N·m
Mounting Type: DIN-Rail
Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal
Actuator Marking: I / O
Actuator Material: Insulation Group II, Black, Sealable
Housing Material: Insulation Group II, RAL 7035
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position: any
Recommended Screw Driver: Pozidriv 2
Accessories Available: Yes
Connecting Capacity: Busbar 10 / 10 mm²Flexible with Ferrule 0.75 ... 25 mm²Flexible 0.75 ... 25 mm²Rigid 0.75 ... 35 mm²Stranded 0.75 ... 35 mm²
Installation Size: acc. to DIN 43880 1
Wire Stripping Length: 12.5 mm
Terminal Type: Screw Terminals

Eco Transparency

Environmental Product Declaration - EPD: 9AKK108467A7832

Classifications

ETIM 9: EC000042 - Miniature circuit breaker (MCB)
EPLAN Function Definition: Circuit breaker / Single circuit breaker / Circuit breaker 1_2
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B: Business To Business
CN8: 8536 20 10
EClass: V11.0 : 27141901
IDEA Granular Category Code (IGCC): 4897 >> Miniature circuit breakers
Object Classification Code: F

Environmental

Ambient Air Temperature: Operation -25 ... +55 °CStorage -40 ... +70 °C
Reference Ambient Air Temperature: 30 °C
Degree of Protection: IP20Enclosure with Cover IP40
Pollution Degree: 3
Environmental Conditions: 28 cycleswith 55 °C / 90-96 %and 25 °C / 95-100 %
Resistance to Vibrations acc. to IEC 60068-2-6: 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms
RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Information: 2CDK403001D0607
REACH Declaration: 9AKK107492A1906
SCIP: e6800e55-46b1-49a3-881b-0f66d0e903ad Germany (DE)

Circular Value

Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 90 %
Sustainable Material Content: 0 %
Offered with Extended Lifetime: Product Durability
Offered with Takeback Services: Take Back for Recycling

Technical UL/CSA

Maximum Operating Voltage UL/CSA: 60 V DC480Y/277 V AC
Interrupting Rating acc. to UL1077: (277 V AC) 6 kA(60 V DC) 10 kA(120 V) 10 kA
Connecting Capacity UL/CSA: Busbar 18-8 AWGConductor 18-4 AWG
Tightening Torque UL/CSA: 18 in·lb
