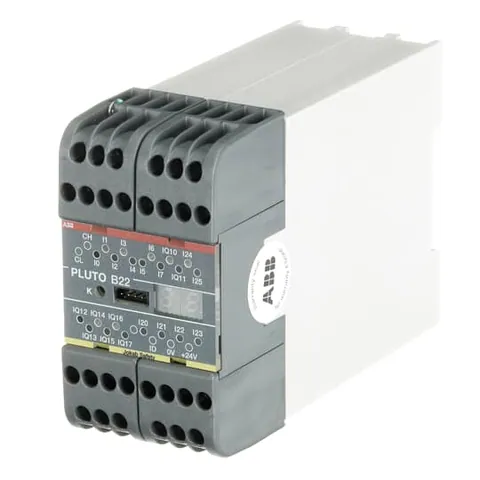

ABB 2TLA020070R4800PLUTO B22 SAFETY-PLC
Offer Description
Pluto B22 Programmable safety controller(We have additional 1 Units not tested - available with 5 days lead time)
Product Description
The PLUTO B22 SAFETY-PLC is a compact and powerful safety PLC designed for all machine safety applications. It features the Pluto safety bus and offers a total of 22 I/O, including 14 failsafe inputs and 8 non-failsafe outputs/failsafe inputs. This PLC does not include Pluto safety outputs.
Key Features:
Cost-effective and compact design
Pluto safety bus integration
22 I/O: 14 failsafe inputs + 8 non-failsafe outputs/failsafe inputs
High diagnostic coverage
Compliance with Performance Level (PL) up to e and Safety Integrity Level (SIL) 1, 2, 3
Applications:
The PLUTO B22 SAFETY-PLC is ideal for machine safety applications where multiple safety sensors need to be connected to a single input while achieving the highest safety level. It is suitable for industries such as manufacturing, automotive, and packaging, where safety and reliability are paramount.
Programming is done easily using the accompanying software, Pluto Manager, which allows for seamless integration and configuration of safety devices.
Product Details
- Brand
- ABB
- Country of Origin
- Sweden
- Part Number
- 2TLA020070R4800
- Tariff Code
- 85364110
- EAN
- 7320500410561
- UPC
- 7320500410561
- UNSPSC
- 32151705
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : PLC CPU-module
- Class Code : EC000236
- Version : 7
Offer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 17-07-2025
- Warranty:
- 24 months
- Estimated Delivery:
- 25-31 July to United States
- Condition:
- Used
Are you a Supplier?
Join 650 suppliers, sell to 3500+ verified buyers.
Policies and Information
Shipping Information
Return & Refund Policies
Secure Payment Process
Warranty Policies
General Information
- Extended Product Type
- Pluto B22
Dimensions
- Product Net Depth / Length
- 120 mm
- Product Net Height
- 84 mm
- Product Net Width
- 45 mm
- Product Net Weight
- 0.39 kg
Safety Information
- Performance Level (PL)
- Up to e
- Safety Integrity Level (SIL)
- 1, 2, 3
Technical
- Diagnostic Coverage
- High
- Number of Inputs
- Failsafe 22
- Number of Outputs
- Failsafe (Transistor) 0, Failsafe (Relay) 0, Non-Failsafe 8
- Protocol Type
- MODBUS ASCII, Pluto Safety Bus, StatusBus
- Rated Control Supply Voltage (Us)
- 24 V DC
- Supply Voltage
- 24 V DC
Material Compliance
- Conflict Minerals Reporting Template (CMRT)
- CMRT - Conflict Minerals Reporting Template
- REACH Declaration
- REACh - Safety Products
- RoHS Information
- RoHS - Safety Products
- RoHS Status
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA
- Toxic Substances Control Act (TSCA) declaration for Safety Products
- WEEE B2C / B2B
- Business To Business
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
- ATEX Certificate
- No
- Declaration of Conformity - CE
- EC Declaration of conformity Pluto
- Declaration of Conformity - UKCA
- UK DoC - Pluto
- TÜV Certificate
- EC type-examination certificate - Pluto
- UL Certificate
- No certification needed
- VDE Certificate
- No certification needed
Container Information
- Package Level 1 Units
- box 1 piece
- Package Level 1 Width
- 90 mm
- Package Level 1 Depth / Length
- 130 mm
- Package Level 1 Height
- 57 mm
- Package Level 1 Gross Weight
- 0.42 kg
- Package Level 1 EAN
- 7320500410561
External Classifications and Standards
- EClass
- V11.0 : 27242207
- ETIM 7
- EC000236 - PLC CPU-module
- ETIM 8
- EC000236 - PLC CPU-module
- ETIM 9
- EC000236 - PLC CPU-module
- IDEA Granular Category Code (IGCC)
- 3561 >> Programmable Logic Controller Module
- UNSPSC
- 32151705
- Object Classification Code
- K
- E-Number (Finland)
- 2712235
- E-Number (Sweden)
- 3860081
Documents
Data Sheet
Datasheet for ABB 2TLA020070R4800, including specifications and features.
Download Data SheetRelated products
Additional Information
The PLUTO B22 SAFETY-PLC is a versatile and reliable solution for machine safety applications, offering high diagnostic coverage and compliance with top safety standards.
