Balluff
BES 516-371-G-E5-C-S49

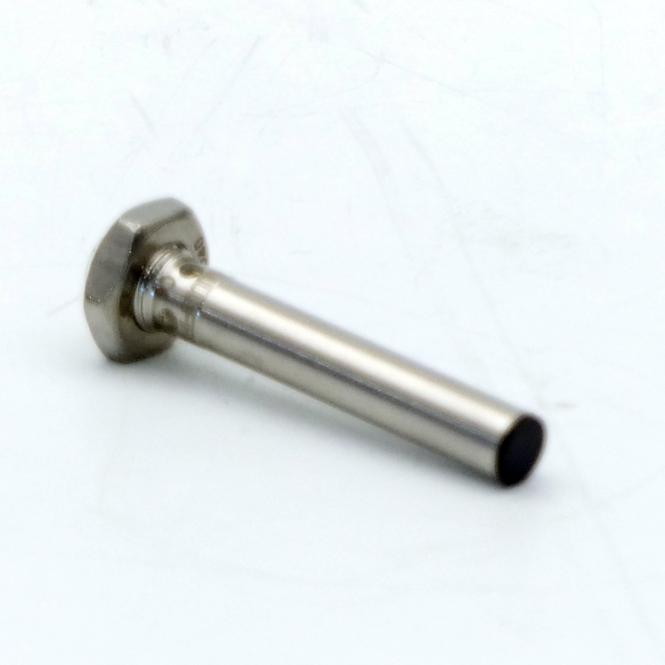

Inductive standard sensors with preferred types BES 516-371-G-E5-C-S49
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
£53.90
1
Payment methods:
A total of 35 Parts In-Stock from 6 Distributors
Product Conditions:
Additional Information
- Part Number
- BES 516-371-G-E5-C-S49
Specifications
- Dimension
- Ø 6.5 x 45 mm
- Style
- D6.5
- Installation
- for flush mounting
- Range
- 2 mm
- Switching output
- PNP Normally open (NO)
- Switching frequency
- 1500 Hz
- Housing material
- Stainless steel
- Material sensing surface
- PBT
- Connection
- Connector, M8x1-Male, 3-pin
- Operating voltage Ub
- 10-30 VDC
- Ambient temperature
- -25-70 °C
- IP rating
- IP67
- Approval/Conformity
- cULus, CE, EAC, WEEE
Documents
Data Sheet
