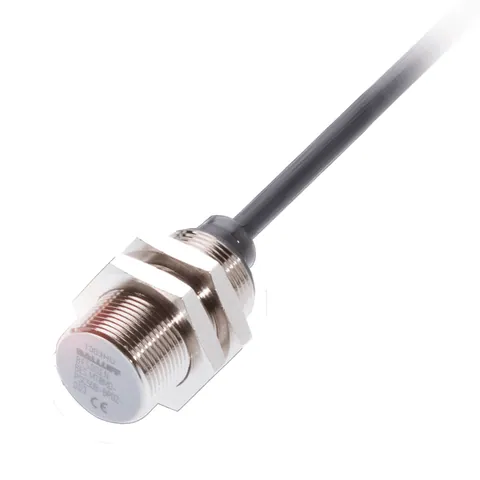

Balluff BES M18MD-PSC80B-BP05-003

The inductive sensors with the designation code BES M18MD-PSC80B-BP05-003 are specifically engineered for effective object detection in metallic areas. These sensors function without contact, ensuring wear-free operation and high resistance to dirt and contamination.

With dimensions of Ø 18 x 36 mm, they are constructed for flush mounting and are available in various configurations ranging from 3 mm Ø to 80 × 80 mm square dimensions. The sensors feature a switching output of PNP Normally Open (NO) and a switching frequency of 150 Hz, accommodating a sensing range of 8 mm.

Constructed from brass with a nickel-plated surface protection, the housing is complemented by a PBT material sensing surface. They come with a 5.00 m PUR cable connection and operate efficiently within a voltage range of 10-30 VDC. These sensors are rated for ambient temperatures between -25 to 70 °C and carry an IP67 protection rating, ensuring durability in various environmental conditions. Compliance with standards such as CE, cULus, EAC, and WEEE enhances their reliability for industrial applications.
