Balluff
BGL 5A-001-S49

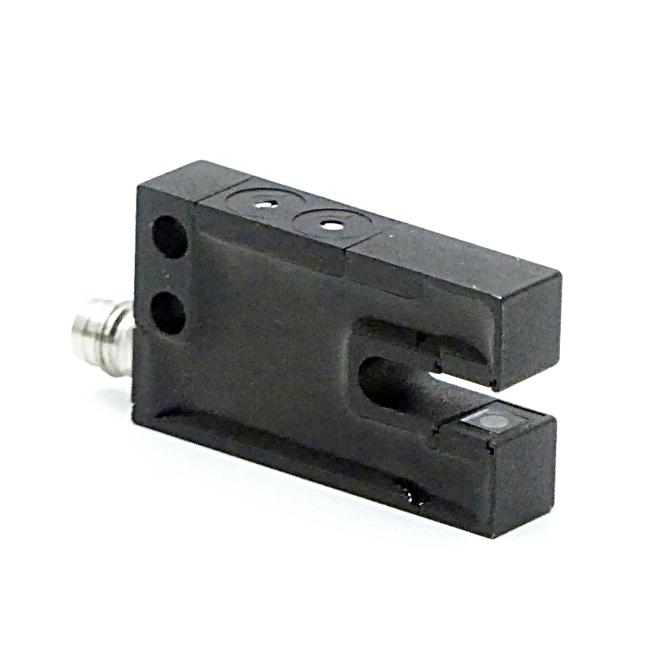

Fork sensors BGL 5A-001-S49
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€124.56
1
Payment methods:
A total of 30 Parts In-Stock from 5 Distributors
Product Conditions:
Additional Information
- Part Number
- BGL 5A-001-S49
Specifications
- Series
- A
- Dimension
- 10 x 25 x 54 mm
- Fork opening
- 5 mm
- Interface
- PNP NO/NC
- Principle of operation
- Fork sensor
- Principle of optical operation
- Through-beam sensor
- Beam characteristic
- Divergent
- Light type
- LED Red light
- Light spot size
- Ø 1.0 mm Light exit
- Connection
- Connector, M8x1-Male, 3-pin
- Housing material
- Zinc, Die casting
- Material sensing surface
- Glass
- Operating voltage Ub
- 10-30 VDC
- Approval/Conformity
- CE, cULus, EAC, WEEE
- Trademark
- Global
Documents
Data Sheet
