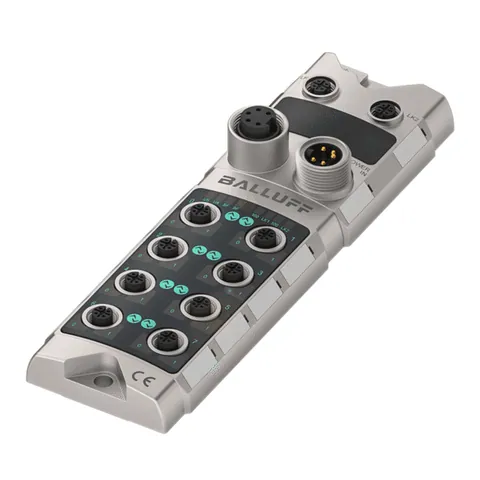

Balluff BNI PG3-508-0C5-Z015
Network blocks for Profinet - BNI00HL
1 / 2
Manufacturer catalogue image
Product Description
Achieve highly decentralized and efficient sensor and actuator integration with the Balluff BNI PG3-508-0C5-Z015 network block, also known by the order code BNI00HL. This robust IO-Link Master is specifically designed for seamless connection to a PROFINET I/O fieldbus, providing a powerful and versatile communication hub for your industrial network.
The BNI PG3-508-0C5-Z015 features 8 IO-Link auxiliary interfaces (Type A ports), each with an M12x1 female connector, allowing for the connection of up to 8 IO-Link devices. It supports a wide operating voltage range of 18 to 30.2 VDC and offers a generous current sum for both sensors (9.0 A US) and actuators (9.0 A UA). With 16 configurable PNP digital inputs and 16 PNP digital outputs, this active splitter block provides extensive I/O capabilities. Its rugged, zinc die-cast housing offers IP67 protection, making it suitable for even the harshest industrial environments with an ambient temperature range of -25 to +70°C. Connectivity includes two M12x1 D-coded female connectors for COM ports and 7/8" male/female connectors for supply voltage. This Balluff IO-Link Master supports Fast Start-Up (FSU) and is compatible with IO-Link version 1.1.3, ensuring high-speed data transfer (10/100 Mbit/s) and modern networking capabilities.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
- Trusted supplier — Czechia, member since 2021, 50–99 employees
- Availability:
- 5 pcs.In-StockUpdated at: 05-09-2026
- Warranty:
- 24 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Balluff
- Interface
- Profinet I/O
- Operating voltage Ub
- 18...30.2 VDC
- Display
- no
- Connection (COM 1)
- M12x1-Female, 4-pin, D-coded
- Connection (COM 2)
- M12x1-Female, 4-pin, D-coded
- Connection (supply voltage IN)
- 7/8"-Male, 5-pin
Available Offers
(4):fill(white):quality(80)/media/thumbor)
Balluff
- Available:
- 10 pcs.In-StockUpdated at: 05-09-2026
- Offer from:
Trusted supplier — Poland, member since 2023, 50–99 employees- Warranty:
- 24 months
Balluff
- Available:
- 7 pcs.In-StockUpdated at: 05-09-2026
- Offer from:
- Trusted supplier — Poland, member since 2023, 50–99 employees
- Warranty:
- 24 months
Access our platform to find more offers
Register now to explore 36 mln offers from verified suppliers worldwide.
- Compare offers globally
- Direct supplier contact
- RFQs, Quotes, and Orders
- BOM Search
Sign UpFree 14-day trial available
Documents
Data Sheet
Datasheet for Balluff BNI PG3-508-0C5-Z015, including specifications and features.
Download Data Sheet
TracePartsCAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model
