Balluff BOS 6K-PU-RH11-S75

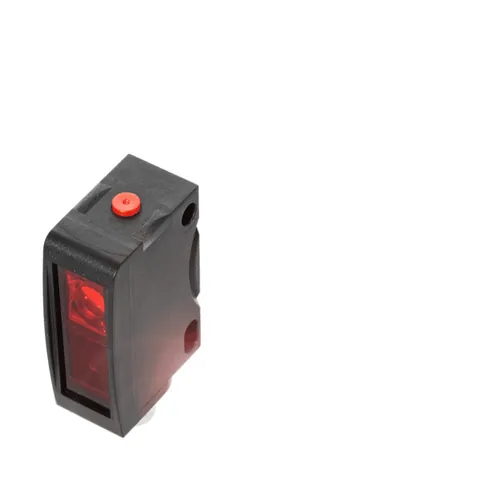

Diffuse sensor with background suppression 6K-PU-RH11-S75
Product Description
The 6K-PU-RH11-S75 diffuse sensor utilizes background suppression technology, allowing it to maintain consistent detection performance despite variations in surface color and material. This sensor operates on the principle of triangulation, ensuring accurate readings within a range of 3 to 400 mm.
With dimensions of 12 x 41.5 x 21.6 mm, the device features a PNP NO/NC interface and emits red LED light. Its focused beam characteristic is optimal at 60 mm, producing a light spot size of 8 x 8 mm at the focal point. The housing is constructed from ABS, while the sensing surface is made of PMMA, ensuring durability and reliability.
The sensor operates within a voltage range of 10-30 VDC and incorporates a 4-pin M8x1 male connector for connectivity. It also meets various approvals including cULus, CE, EAC, and WEEE, confirming its compliance with international standards.
Need more information?
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Specifications
- Brand
- Balluff
- Series
- 6K
- Interface
- PNP NO/NC
- Principle of operation
- Photoelectric sensor
- Principle of optical operation
- Diffuse sensor, Triangulation
- Special optical feature
- Background suppression
- Beam characteristic
- Focus, typical at 60 mm
Documents
Data Sheet
Datasheet for Balluff BOS 6K-PU-RH11-S75, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
