Bosch Rexroth 3842994189

Name: 3842994189
Brand: Bosch Rexroth
SKU: 3842994189

3842994189

1 / 4

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

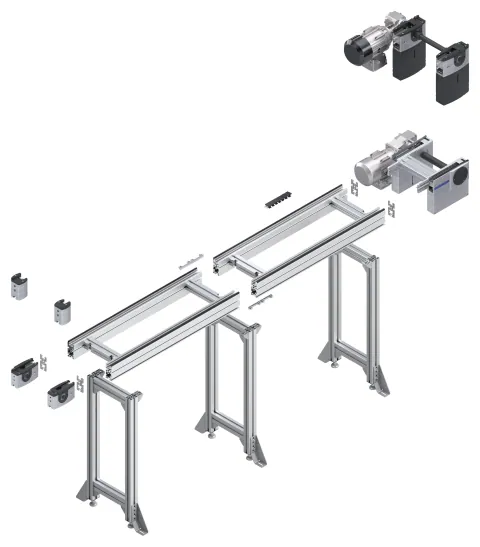

The section is used to construct heavy-duty conveyor units with plastic flat-top chains in connection with the drive modules AS 2/C-... and return units UM 2/C-... - For conveyor unit self-assembly - For use in conjunction with all drive modules AS 2/C-... and return units UM 2/C... - Section profile (50 mm wide) in an especially sturdy version for section loads of up to 30% higher - Conveyor medium plastic flat top chain - Optional steel or plastic GP 2 glide profiles - The WT 2/LS can be used for longitudinal conveyors with this component - It is not possible to cross over

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842994189
Operating temperature [T] max: +40 °C

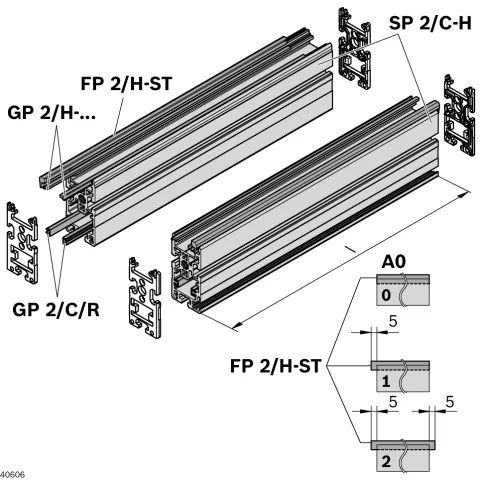

Scope of delivery: 2x section profile SP 2/C-H with installed guide profiles FP 2/H-ST and glide profiles GP 2/H
Material information: Glide profile: PA/steel; corrosion-resistant Guide profile: Steel; corrosion-resistant Section profile: Aluminum, natural; anodized
Conveyor medium: Plastic flat-top chain
Required accessories: Adapter plate kit ST 2/C-H If GP = 0, then adapter plates are to be fitted between each section joint
