Bosch Rexroth 3842996370

Name: 3842996370
Brand: Bosch Rexroth
SKU: 3842996370

3842996370

1 / 2

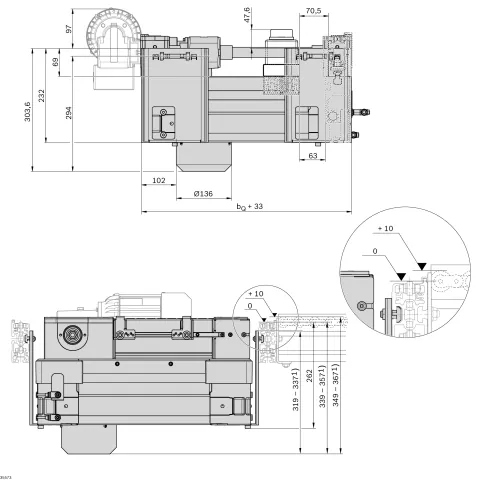

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

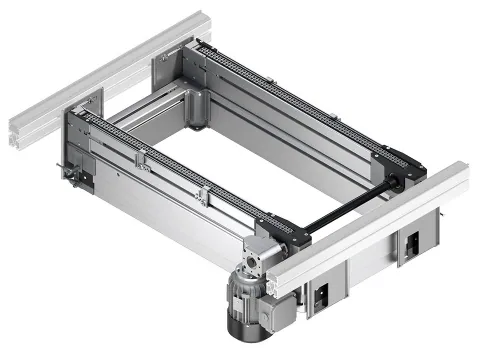

Lift transverse unit HQ 2/G-H - Lift transverse unit for feeding out of a from longitudinal section into a transverse section and vice versa - The particularly compact design permits system layouts on several levels when space is limited - Use for high total weights up to 2 kg/cm on the smallest side of the workpiece pallet and up to 240 kg - Synchronized lifting movement of the four block cylinders for uniform and parallel lifting movement - Integrated chain tensioner; to be adjusted manually - Conveyor medium: Duplex chain (suitable for use in an EPA) - Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm - Depending on the installation, height-adjustable lateral guides can be used as a fixed stop for exporting or as a lateral guide when changing workpiece pallets - Fixed stops in the form of adjustable/movable lateral guides made of strip steel - Can be combined with WT 2, WT 2/E and WT 2/F - Accumulation operation not permitted - Reversible operation possible - Only workpiece pallets with PE wear pad are permitted
