Bosch Rexroth 3842996463

Name: 3842996463
Brand: Bosch Rexroth
SKU: 3842996463

3842996463

1 / 4

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

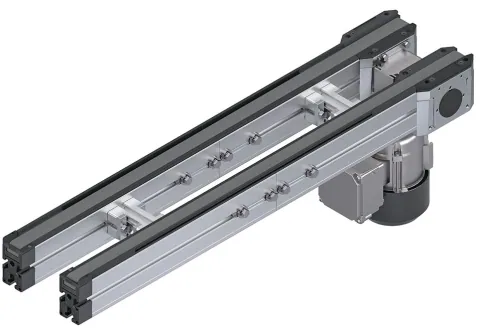

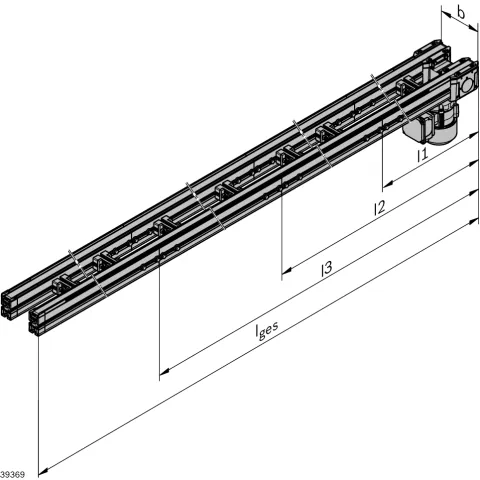

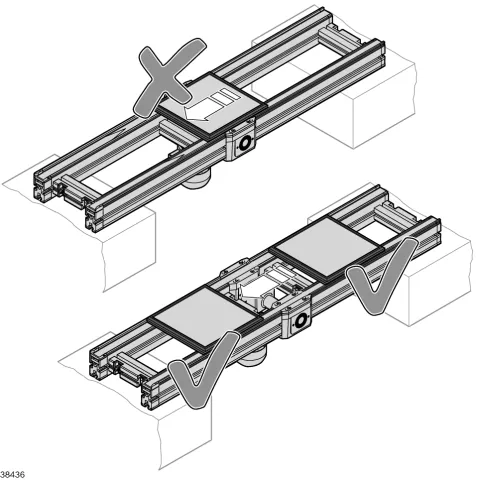

BS 2/S belt section - The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units. - Segmented belt section with the possibility of up to 3 additional cuts in the longitudinal profile - Connection with standard profile connectors - This allows flexible individual parts of the belt section to be removed - This also causes simpler handling and more efficient transportation of the belt sections - Accumulation operation possible - Conveyor medium: Toothed belt (suitable for use in an EPA) - Reversible operation possible - Can be combined with WT 2, WT 2/E, WT 2/F, WT 2/LS - Motor mounting on right, left or centrally (centrally on track widths of 240 mm and above) - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) - Special models on request - Positioning of WTs in the area of the drive heads/return heads is not permitted.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842996463
ESD: Yes
Section load in accumulation operation [kg]: 60
Nominal speed [vN]: 0 m/min ohne Motor und ohne Getriebe 12 m/min 15 m/min 18 m/min 6 m/min 9 m/min
Delivery information: Fully assembled

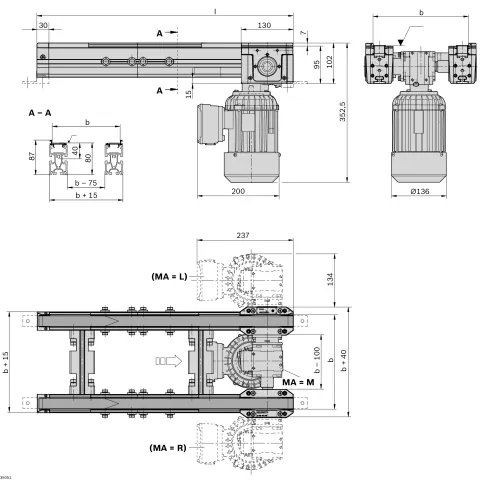

Notice: Individual width variants can be ordered When MA = M and b = 160 mm, the max. section load is only 30 kg
