Bosch Rexroth 3842998012

Name: 3842998012
Brand: Bosch Rexroth
SKU: 3842998012

3842998012

1 / 4

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

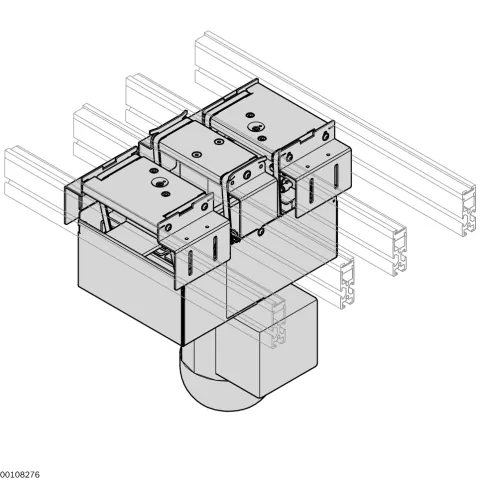

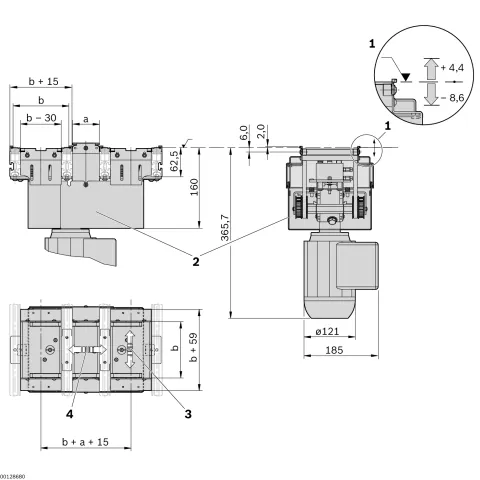

Electrical transverse conveyor for connection of two longitudinal sections running in parallel with a small distance between conveyors. The electrical transverse conveyor EQ 1/TR is used for connecting two parallel longitudinal sections with a small distance between conveyors. It is also suitable for use in ESD applications. Accumulation operation not permitted. - Available for belt distances a = 60 mm or a = 135 mm - Lift cylinder – D = 25 mm - Total stroke: 13 mm - Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA - Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) - Special models on request

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998012
ESD: Yes
Dry room [%rF]: <1
Required compressed air connection [pmax] [bar]: 6
Required compressed air connection [pmin] [bar]: 4
Nominal speed [vN]: 0 m/min ohne Motor und ohne Getriebe 12 m/min 15 m/min 18 m/min 6 m/min 9 m/min
