Bosch Rexroth 3842998013

Name: 3842998013
Brand: Bosch Rexroth
SKU: 3842998013

3842998013

1 / 4

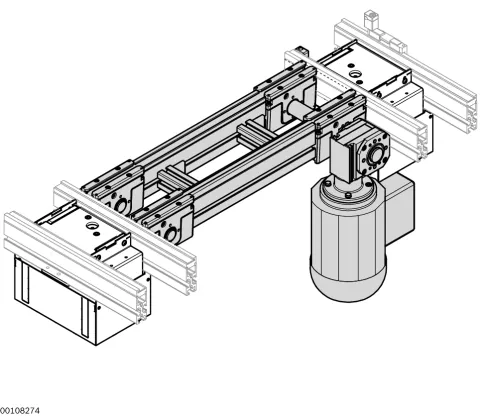

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

Electrical transverse conveyor for connection of two longitudinal sections running in parallel with a distance between conveyors of more than 320 mm. The electrical transverse conveyor EQ 1/T is used for connecting two parallel longitudinal sections with a distance between conveyors of > = 320 mm. The belt section and the two lift transverse units share a common motor. It is also suitable for use in ESD applications. Accumulation operation on the belt section and reversible operation are allowed. - Section load up to 30 kg - Lift cylinder – D = 25 mm - Total stroke: 13 mm - Motor mounting right (MA = R) or left (MA = L), with b = 160 mm also center (MA = M) - Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA - Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) - Special models on request

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998013
ESD: Yes
Scope of delivery: Fastening material for installation between two ST 1 sections Two lift transverse units, completely assembled Two mounting kits for the drive of the lift transverse units Two protective housings Belt Section BS 1/T
Preferred values [mm]: 120 160 80
Clean room classification: ISO class 7
Dry room [%rF]: <1
