Product Description
Lifecycle Status:Successor:

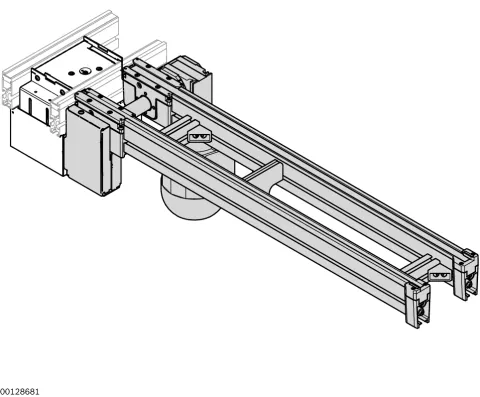

Electrical transverse conveyor for branching workpiece pallets from a longitudinal section.

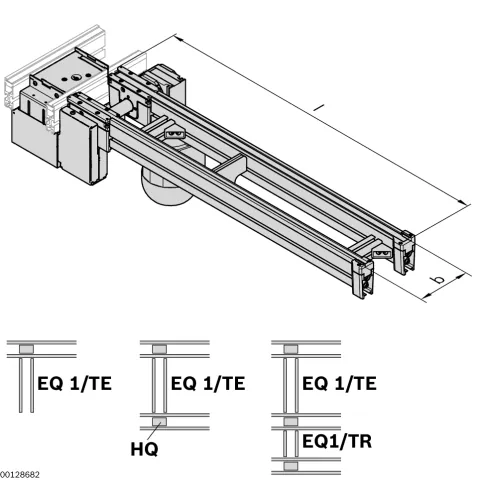

The electric transverse conveyor EQ 1/TE is used as a branching transverse section. This can either be used as a dead end or, at the other end, transfer the workpiece pallets to an HQ or EQ 1/TR with built-in drive in order to feed them back into the longitudinal conveyor. The belt section and the lift transverse unit share a common motor. It is also suitable for use in ESD applications. Accumulation operation on the belt section and reversible operation are allowed.
- Section load up to 30 kg
- Lift cylinder – D = 25 mm
- Total stroke: 13 mm
- Motor mounting right (MA = R) or left (MA = L), with b = 160 mm also center (MA = M)
- Conveyor medium: Toothed belt with mesh top, suitable for use in an EPA
- Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions
- Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K)
- Special models on request
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Bosch Rexroth
- Product ID
- 3842998014
- ESD
- Yes
- Dry room [%rF]
- <1
- Required compressed air connection [pmax] [bar]
- 6
- Required compressed air connection [pmin] [bar]
- 4
- Section load in accumulation operation [kg]
- 30
