Bosch Rexroth 3842998049

Name: 3842998049
Brand: Bosch Rexroth
SKU: 3842998049

3842998049

1 / 4

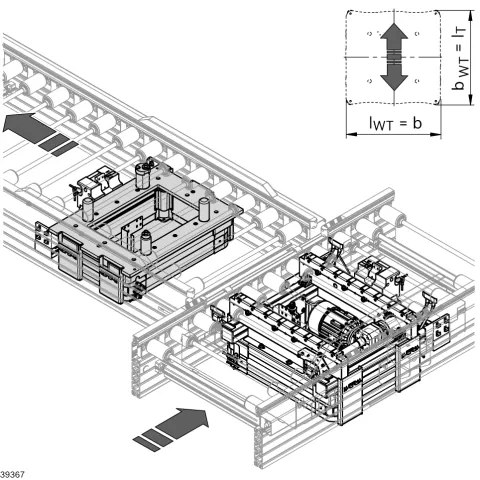

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

PE 5/L-T positioning unit - Positioning a workpiece pallet in a manual or automated processing station in the transverse conveyor with high positioning accuracy requirements (±0.3 mm) - Can be used with all WT 5 workpiece pallets - Installation only possible from above - Lift over transport level: 5 mm - Positioning accuracy: ±0.3 mm in x and y direction - Permissible vertical process force with center load: up to 3500 N2) depending on WT weight, i.e. permitted load of 3500 N – weight WT = possible process force - Suitable for ST 5/XH and ST 5/H (not ST 5/XH‑FR or ST 5/H‑FR) - Compressed air connection: 5 ... 6 bar - Push in air connection: 8 mm - 2) If assembling in a ST 5/H section place legs directly in front of and behind the PE 5/L-T.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998049
Required compressed air connection [pmax] [bar]: 6
Required compressed air connection [pmin] [bar]: 5
Scope of delivery: Incl. fastening material for mounting the PE 5/L-T in ST 5/XH conveyor sections, and stop kit for VE 5/D‑300 and VE 5/D‑1000.
Delivery information: Fully assembled
Preferred values [mm]: 1040 455 650 845
