Bosch Rexroth 3842998177

Name: 3842998177
Brand: Bosch Rexroth
SKU: 3842998177

3842998177

1 / 4

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

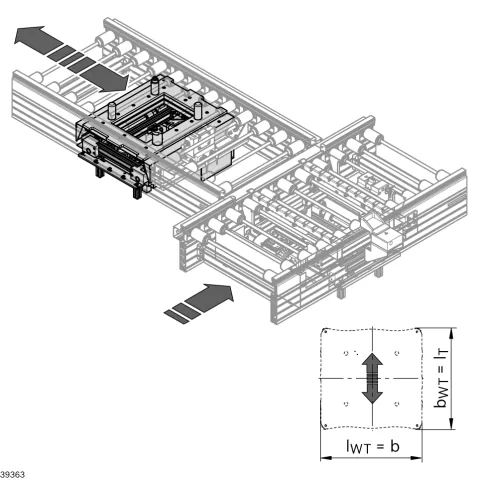

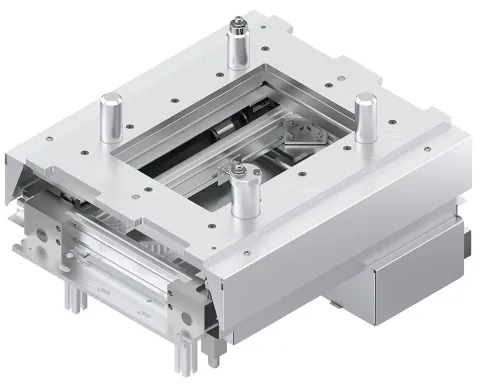

PE 5/T Positioning Unit - Positioning a workpiece pallet in a manual or automated processing station in the transverse conveyor with high positioning accuracy requirements (±0.3 mm) - Can be used with all WT 5 workpiece pallets - Installation from above also possible - Lift over transport level: 5 mm - Positioning accuracy: ±0.3 mm in x and y direction - Permissible vertical process force with center load: up to 4000 N2) regardless of the WT weight - Suitable for ST 5/XH and ST 5/H (not ST 5/XH‑FR or ST 5/H‑FR) - Compressed air connection: 5 ... 6 bar - Push in air connection: 8 mm - 2) If assembling in a ST 5/H section place legs directly in front of and behind the PE 5/T.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998177
Scope of delivery: Incl. fastening material for mounting the PE 5/T in ST 5/XH conveyor sections, and stop kit for VE 5/D‑300 and VE 5/D‑1000.
Delivery information: Fully assembled
Preferred values [mm]: 1040 455 650 845
Required accessories: 1) A position inquiry for the workpiece pallet on the PE is only possible through use of a stop gate VE 5/D‑300 or VE 5/D‑1000. Assembly kit 3 842 996 185 is required for assembly in conveyor sections ST 5/H Stop gate VE 5/200, VE 5/D‑300, VE 5/D‑301 or VE 5/D‑10001)
Recommended accessories: Lateral guide cover Protective sleeves
