Bosch Rexroth 3842998178

Name: 3842998178
Brand: Bosch Rexroth
SKU: 3842998178

3842998178

1 / 4

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

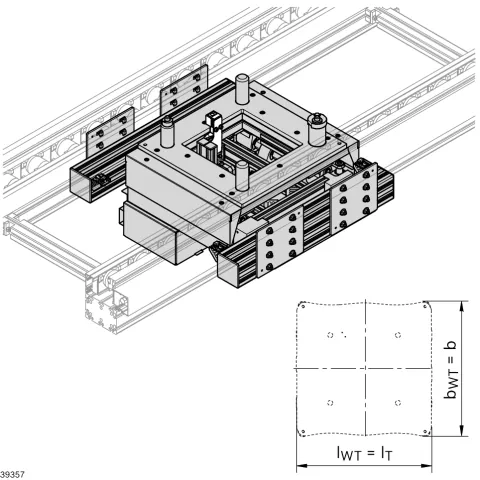

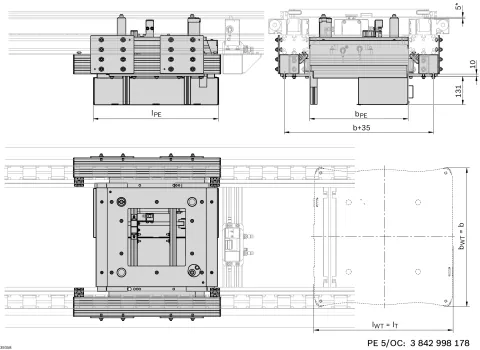

PE 5/OC positioning unit - Positioning a workpiece pallet in a manual or automated processing station in the longitudinal conveyor with high positioning accuracy requirements (±0.3 mm) - Can be used with all WT 5 workpiece pallets - Installation from below - Lift over transport level: 5 mm - Positioning accuracy: ±0.3 mm in x and y direction - Permissible vertical process force with center load: up to 4000 Nregardless of the WT weight - Suitable for ST 5/OC - Compressed air connection: 5 ... 6 bar - Push in air connection: 8 mm

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998178
Scope of delivery: Incl. fastening material for mounting the PE 5/OC in ST 5/OC conveyor sections
Delivery information: Fully assembled
Preferred values [mm]: 455 650 845
Required accessories: Assembly kit SH 2/U‑H 3 842 545 132 Protective sleeves and protective cover SH 2/U‑H 3 842 537 289 switch brackets VE 5/200, VE 5/D‑300, VE 5/D‑301 or VE 5/D‑1000 stop gate
Recommended accessories: Lateral guide cover Protective cover
