Bosch Rexroth 3842998291

Name: 3842998291
Brand: Bosch Rexroth
SKU: 3842998291

3842998291

1 / 4

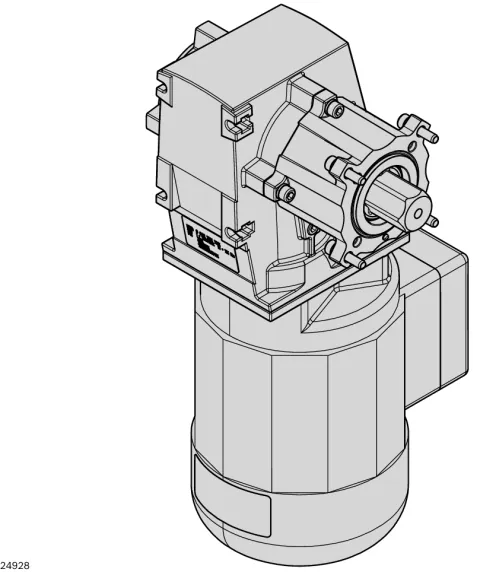

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

The drive kit is designed to operate the basic head drive/connection drive units and the return unit (closed drive). The drive kit contains a flange for attaching the motor to the basic unit, a hexagonal shaft for transmission of force, as well as other optional equipment features. - Versions in aluminum (SP = AL) or stainless steel (SP = STS) - For SP = AL, with adjustable ball catch coupling (Kpg = 1) or without (Kpg = 0). The adjustable ball catch coupling is protected and integrated in the flange to save space and does not serve personal protection. Preset to maximum chain tensile force at the factory - With Lenze gear motor (GM = 1, without surface and corrosion protection) or with an interface for attaching an SEW SA47 gear motor (GM = 2). In order to ensure a compact installation situation, smaller and lighter gear motors (GM=3) or an interface for the installation of an SEW SA37 gear motor (GM=4) are available for applications with low load. An adaptation by the customer is required for attaching other gear motors (GM = 0), - Fixed or adjustable speed (vN). For an adjustable speed, gear motors must be retrofitted with an FU (frequency converter) - Connections are made using terminal boxes (AT = K) or plugs (AT = S)

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998291
Size [b] [mm]: 120 160 240 320 65 90
Nominal speed [vN]: 10 m/min 13 m/min 16 m/min 21 m/min 27 m/min 33 m/min 40 m/min 5 m/min 50 m/min
Version [SP]: AL = Aluminium STS = Edelstahl
Gear motor [GM]: 0 = Schnittstelle SW27 ohne Getriebemotor 1 = Schnittstelle SW27 Lenze-Getriebemotor hohes Drehmoment 2 = Schnittstelle für SEW SA47 ohne Getriebemotor 3 = Schnittstelle SW17 niedriges Drehmoment 4 = Schnittstelle für SEW SA37 ohne Getriebemotor
Scope of delivery: Incl. fastening material Incl. flange, shaft and gear motor (GM = 1)
