Bosch Rexroth 3842998324
3842998324
1 / 4
Reference Image - Not actual item!
Reference Image - Not actual item!
Reference Image - Not actual item!
Reference Image - Not actual item!
Product Description
Lifecycle Status:Successor:

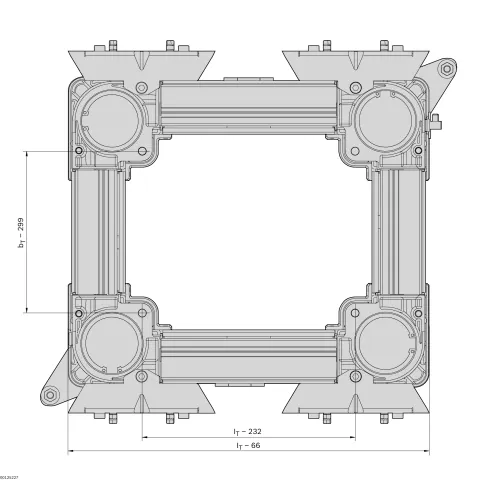

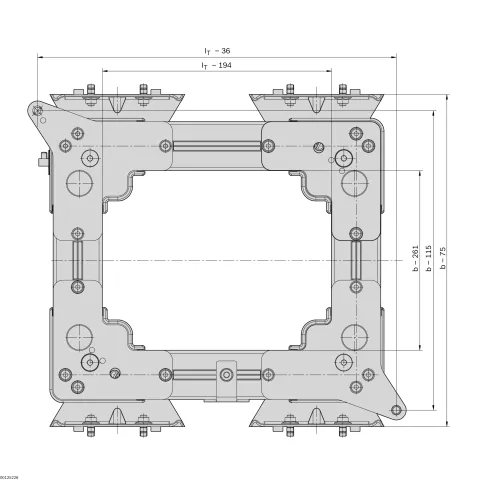

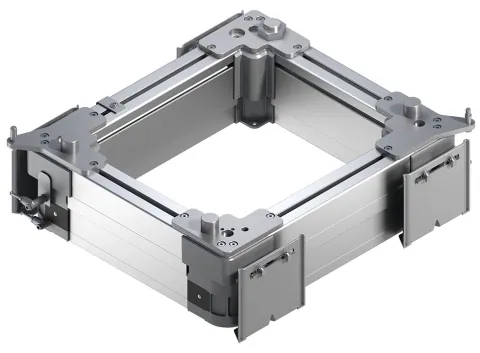

PE 2/X Positioning Unit
- To position a workpiece pallet in a manual/automatic processing station
- Positioning accuracy up to ±0.1 mm when assembled on a separate machine frame
- WT lift above transportation level, approx. 3 mm
- Positioning by means of the positioning pins of the PE 2 and positioning bushings of the WT 2 workpiece pallet
- Mounting bores on lift frame as an optional fastening point for a separate machine frame
- Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm
- Can be combined with WT 2 and WT 2/F workpiece pallets
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Bosch Rexroth
- Product ID
- 3842998324
- ESD
- Yes
- Required compressed air connection [pmax] [bar]
- 6
- Required compressed air connection [pmin] [bar]
- 4
- Repetition accuracy
- ±0,1
- Permissible vertical process force [N]
- 3500
