Bosch Rexroth 3842998529

Name: 3842998529
Brand: Bosch Rexroth
SKU: 3842998529

3842998529

1 / 2

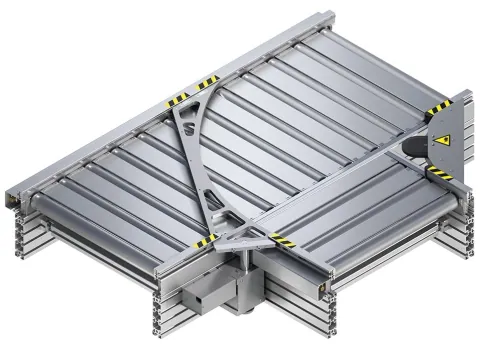

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

DI 5/XH diverter - The diverter is a ready-for-operation module for branching transport of workpiece pallets - The king shaft installation for the main or secondary section can be installed on either side - The diverter is controlled as an active element via a pneumatic cylinder (p = 5 - 6 bar) - Note: The diverter is not suitable for accumulation operation. For permissible loads, see table (under order details). - Reversible operation possible - Accumulation operation not permitted - Support profile made of anodized aluminum - Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support - Driven via king shaft with bevel gears made of sintered metal - Roller spacing p = 130 - Full rollers - mG Up to 300 kg (at v = 9 m/min) - Pneumatic push-in fitting: 6 mm

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998529
Notice: l3 = length of secondary section up to center of main section l4 = length of secondary section and width of main section l1 = length of main section l2 = length of secondary section
Lateral guide material [LG]: 1 = Stahl 2 = Kunststoff 3 = Aluminium
Roller material [TR]: 1 = Stahl, verzinkt 2 = Stahl, nitrocarburiert
Number of rollers [N]: 13 15 17
Delivery information: Optional: Protective covers mounted (protective covers cannot be ordered separately) Ready-to-install
