Bosch Rexroth 3842998531

Name: 3842998531
Brand: Bosch Rexroth
SKU: 3842998531

3842998531

1 / 2

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

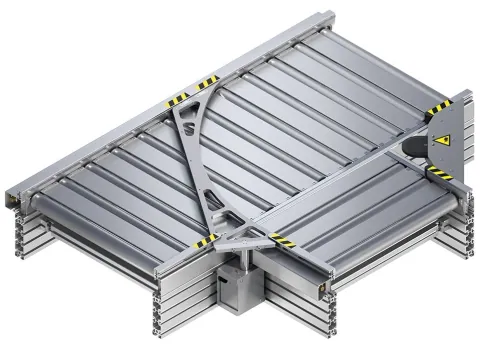

JU 5/XH junction - The junction is a module for branching transport of workpiece pallets - The king shaft installation for the main or secondary section can be installed on either side - The junction is a passive element without any control. The workpiece pallet moves the diverter arm into position - Note: The junction is not suitable for accumulation operation. For permissible loads, see table (under order details). - Reversible operation not permitted - Accumulation operation not permitted - Support profile made of anodized aluminum - Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support - Driven via king shaft with bevel gears made of sintered metal - Roller spacing p = 130 - Full rollers - mG Up to 300 kg (at v = 9 m/min)

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998531
Lateral guide material [LG]: 1 2 3
Roller material [TR]: 1 = Stahl, verzinkt 2 = Stahl, nitrocarburiert
Number of rollers [N]: 13 15 17
Delivery information: Optional: Protective covers mounted (protective covers cannot be ordered separately) Ready-to-install
Notice: l1 = length of main section l2 = length of secondary section l3 = length of secondary section up to center of main section l4 = length of secondary section and width of main section
