Bosch Rexroth 3842998537

Name: 3842998537
Brand: Bosch Rexroth
SKU: 3842998537

3842998537

1 / 2

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

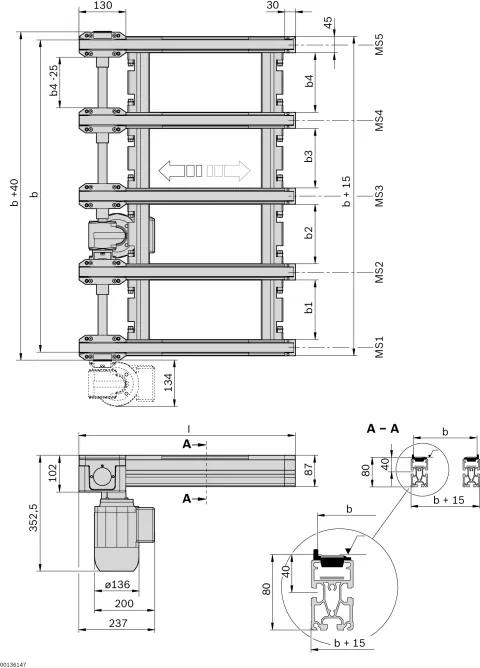

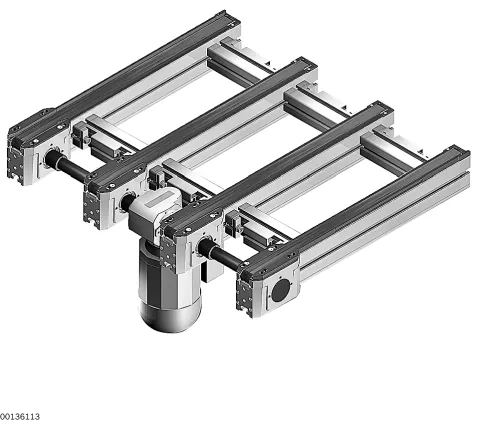

Belt section CSS/B-2 - Minor corrections of the end position of the solar modules on the belt section possible - Most cost-effective solution - Longitudinal conveyor for glass modules of various dimensions - Longitudinal conveyor for wafer trays - Not intended for accumulation operation - Belt section consisting of two to five tracks for secure support of the glass modules across the entire width. Distance between the tracks can be determined individually (b1 to b4) - Permissible load:‒ Per track: max. 0.15 kg/cm support surface length and max. 60 kg‒ Per belt section: max. 120 kg - Suitable for reversible operation (up to 3000 mm) - Conveyor medium: Special textile toothed belt. Due to the low friction coefficient in relation to the workpiece, particularly well suited for lateral positioning procedures - Simple exchange of the toothed belts by dismantling from above without realignment - Gear motors are suitable for operation with frequency converter - Motor mounting on right (MA = R) or left (MA = L) possible on each track of the belt section (MS = 1 ... 5; MS = 1 denotes the left track in the direction of transport). When mounting the motor between the tracks, observe a minimum distance of 165 mm (b1 to b4) - Motor mounting outside: suspended or lying down;Motor mounting between the tracks: suspended - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) - Version with lateral guide (FP = 1) preferably for fully framed glass modules; version withou...

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998537
ESD: Yes
Section load in accumulation operation [kg]: 120
Nominal speed [vN]: 0 m/min, U = 0 0 m/min, U = 0, f = 0, ohne Motor und ohne Getriebe 12 m/min 15 m/min 18 m/min 21 m/min 36 m/min 6 m/min 9 m/min f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll)
Tracks: 2
Delivery information: Motor included separately b ≤ 2000 mm: Assembledb > 2000 mm: Partially assembled
