Bosch Rexroth 3842998544

Name: 3842998544
Brand: Bosch Rexroth
SKU: 3842998544

3842998544

1 / 2

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

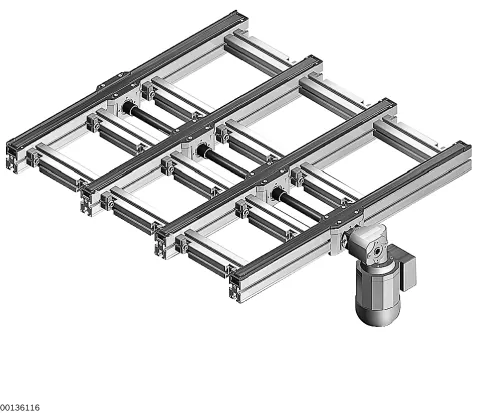

Belt section CSS/BM-5 - Minor corrections of the end position of the solar modules on the belt section possible - Mounting position of the motor central - Longitudinal conveyor for glass modules of various dimensions - Longitudinal conveyor for wafer trays - Use for installation situations in which there is no space for the motor at the ends of the belt section - Not intended for accumulation operation - The position of the motor can be freely selected in the longitudinal direction (l1) - Version otherwise the same as CSS/B

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998544
ESD: Yes
Section load in accumulation operation [kg]: 120
Nominal speed [vN]: 0 m/min, U = 0 0 m/min, U = 0, f = 0, ohne Motor und ohne Getriebe 12 m/min 15 m/min 18 m/min 21 m/min 36 m/min 6 m/min 9 m/min f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll)
Tracks: 5
Delivery information: Motor included separately b ≤ 2000 mm: Assembledb > 2000 mm: Partially assembled
