Bosch Rexroth 3842998635
3842998635
1 / 2
Reference Image - Not actual item!
Reference Image - Not actual item!
Product Description
Lifecycle Status:Successor:

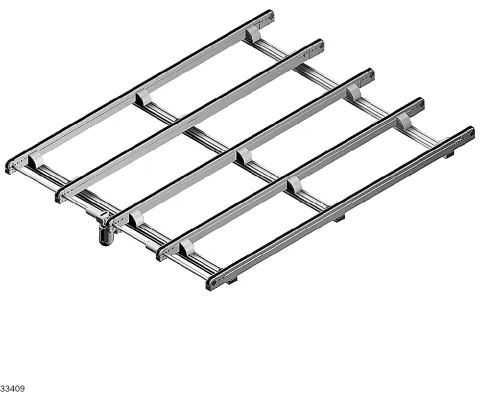

Belt section CSS/NT-5
- Transport of plates up to 160 °C, e.g. as transport system after lamination
- Conveyor medium with high friction coefficient allows high acceleration and deceleration
- No slipping of the modules on the belt section
- Longitudinal conveyor for glass modules
- Suitable for transport of plates up to 160 °C, e.g. as transport system after lamination
- Not intended for accumulation operation

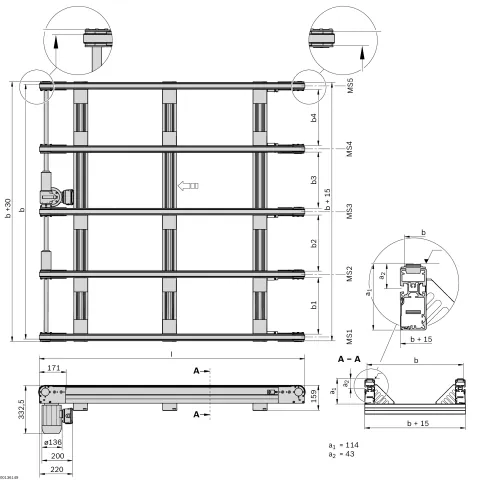

- Belt section consisting of two to five tracks for secure support of the glass modules across the entire width. Distance between the tracks can be determined individually (b1 to b4). Comply with minimum dimensions
- Permissible load:‒ Per track: max. 0.3 kg/cm support surface length and max. 60 kg‒ Per belt section: max. 120 kg
- Suitable for reversible operation up to 1500 mm section length
- Special textile toothed belt with Viton coating
- Dynamic belt tensioner for offsetting the belt stretching due to the temperature exposure
- Simple exchange of the continuous toothed belts by dismantling from the side without realignment. Also possible for inner tracks due to couplings on the hexagonal shaft
- Gear motors are suitable for operation with frequency converter
- Price benefit when ordering certain standard lengths as well as significant shortening of the delivery time for toothed belts in case of servicing
- Suitable for use in cleanroom environments up to cleanroom class 7 in accordance with ISO 14644-1
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Bosch Rexroth
- Product ID
- 3842998635
- Section load in accumulation operation [kg]
- 120
- Nominal speed [vN]
- 0 m/min, U = 0, f = 0: ohne Motor und ohne Getriebe 0 m/min, U = 0,f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll) 12 m/min 15 m/min 18 m/min 36 m/min 6 m/min 9 m/min
- Tracks
- 5
- Delivery information
- Motor included separately
- Notice
- Length deviation ± 0.5% bxmin = 350 mm for motor mounting between the tracks
