Bosch Rexroth 3842998644

Name: 3842998644
Brand: Bosch Rexroth
SKU: 3842998644

3842998644

1 / 2

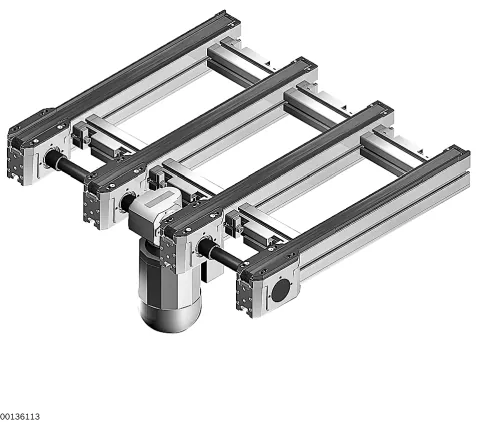

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

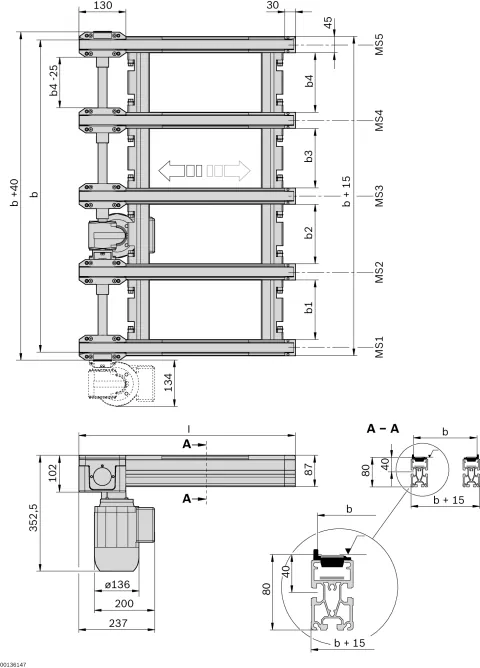

Belt section CSS/F-4 - Conveyor medium with high friction coefficient allows high acceleration and deceleration - No slipping of the modules on the belt section - Same system dimensions as CSS/B - Longitudinal conveyor for glass modules of various dimensions - Not intended for accumulation operation - Belt section consisting of two to five tracks for secure support of the glass modules across the entire width. Distance between the tracks can be determined individually (b1 to b4). Comply with minimum dimensions - Permissible load:‒ Per track: max. 0.15 kg/cm support surface length and max. 40 kg‒ Per belt section: max. 120 kg - Suitable for reversible operation (up to 3000 mm) - Textile toothed belt with PU coating for high friction coefficients and improved static friction when starting and accelerating - Simple exchange of the toothed belts by dismantling from above without realignment - Gear motors are suitable for operation with frequency converter - Motor mounting on right (MA = R) or left (MA = L) possible on each track of the belt section (MS = 1 ... 5; MS = 1 denotes the left track in the direction of transport). When mounting the motor between the tracks, observe a minimum distance of 165 mm (b1 to b4) - Motor mounting outside: suspended or lying down;Motor mounting between the tracks: suspended - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) - Version with lateral guide (FP = 1) preferably for fully framed glass modules; version withou...

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998644
Delivery information: b ≤ 2000 mm: Assembledb > 2000 mm: Partially assembled Motor included separately
Section load in accumulation operation [kg]: 120
Nominal speed [vN]: 0 m/min, U = 0 0 m/min, U = 0, f = 0, ohne Motor und ohne Getriebe 12 m/min 15 m/min 18 m/min 21 m/min 36 m/min 6 m/min 9 m/min f = 50/60 Hz: ohne Motor, mit Getriebe (wenn technisch sinnvoll)
Notice: bxmin = 165 mm for motor mounting between the tracks
Recommended accessories: Frames SFS Frequency converter FU Leg set SZS/B
