Bosch Rexroth 3842998683

Name: 3842998683
Brand: Bosch Rexroth
SKU: 3842998683

3842998683

1 / 2

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

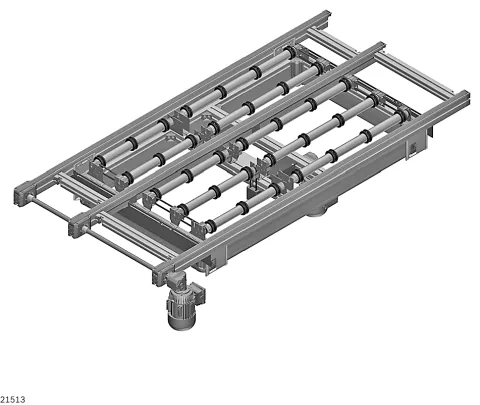

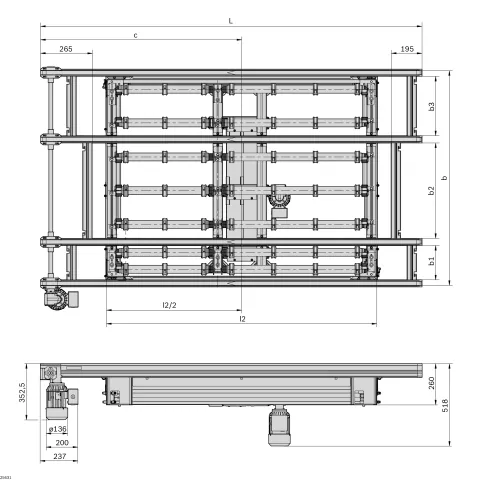

Lift transverse unit LTS/F-3 - Lift transverse unit LTS/…, consisting of a belt section CSS/… and a lift unit for setting up right-angled section branches - Version with two to four tracks. Distance between the tracks can be determined individually (b1 to b3). Comply with minimum dimensions - Permissible load:‒ Per track: max. 0.15 kg/cm support surface length and max. 40 kg for LTS/F,max. 60 kg for LTS/B ‒ Per belt section: max. 120 kg - O-rings for high friction coefficients and improved static friction for transverse conveyor - Tracks without lateral guide - Reversible across the entire value range - Simple exchange of the toothed belts - Gear motors are suitable for operation with frequency converter - Motor mounting on right (MA = R) or left (MA = L) possible on each track of the belt section (MS = 1 ... 4; MS = 1 denotes the left track in the direction of transport) - Motor connection optionally with cable/plug (AT = S) or terminal box (AT = K) - Two lift positions

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998683
Nominal speed [vN]: 0 m/min ohne Motor und ohne Getriebe 12 m/min 15 m/min 18 m/min 21 m/min 36 m/min 6 m/min 9 m/min
Delivery information: Fully assembled Motors included separately
Required accessories: Leg set SZS/B
