Bosch Rexroth 3842998761

Name: 3842998761
Brand: Bosch Rexroth
SKU: 3842998761

3842998761

1 / 3

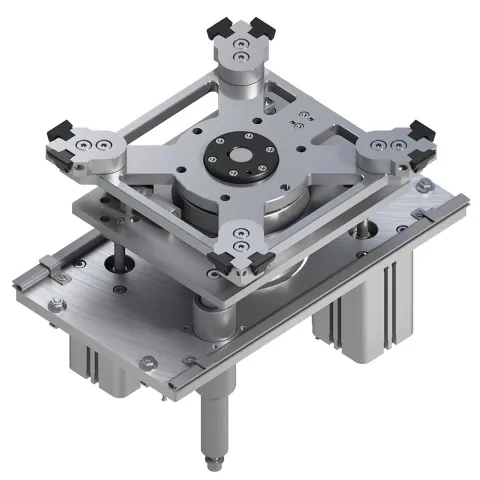

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

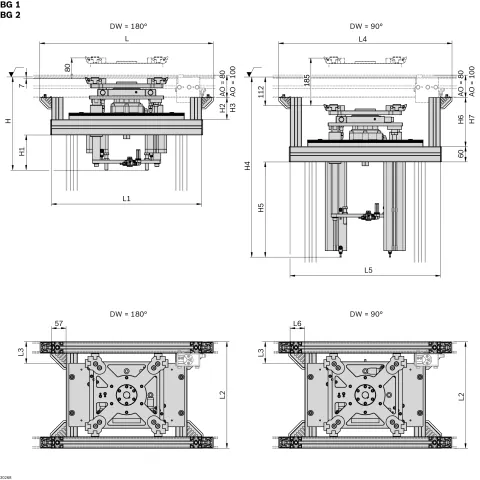

HD 2/H BG2 lift rotate unit - WT lift above transportation level, approx. 50 mm - Available in 3 sizes (BG) for WT total weights up to 240 kg – BG 1 and BG 2 for use with workpiece pallets WT 2, WT 2/F and WT 2/LS (only with version LS) – BG 3 for use with workpiece pallets WT 2/H and WT 2/F-H - Rotation by 90° or 180° – For rotating square workpiece pallets by 90° or 180° – For rotating non-square workpiece pallets by 180° – For 90° rotation, the reverse rotation for BG 1 and BG 2 takes place below the belt. Reduced cycle times by means of reverse rotation during workpiece pallet change. For BG 3 and 90° rotation, the reverse rotation takes place above the belt– Center position only with BG 1 and BG 2 in 90° version

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998761
ESD: Yes
Lift of WT over conveyor medium [h0]: 50
Scope of delivery: 2x damper for end positions of the rotary movement Incl. fastening material for assembly on conveyor sections Pneumatic elements such as fittings, throttle non-return valves, etc. for the top/center/bottom lift positions
Delivery information: Fully assembled
Notice: For use with WT 2 and WT 2/F workpiece pallets only Only possible for DW = 90° quadratic workpiece pallets
