Bosch Rexroth 3842998796
3842998796
1 / 4
Reference Image - Not actual item!
Reference Image - Not actual item!
Reference Image - Not actual item!
Reference Image - Not actual item!
Product Description
Lifecycle Status:Successor:

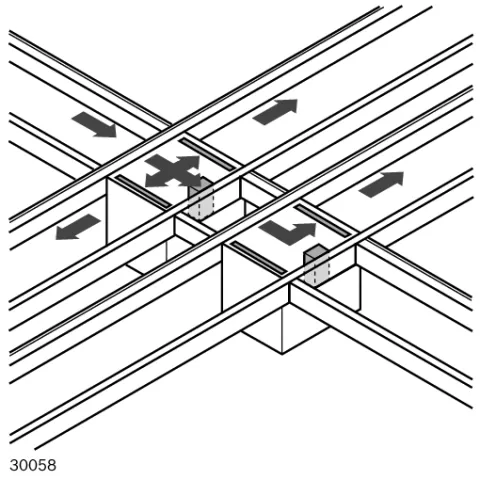

VA 2/D-250 Slide Stop
Slide stop, can be lowered pneumatically, damped stop only for use with HQ 2/C-H
- Slide stop; can be lowered pneumatically, dampened stop, for use with HQ 2/C-H (minimum transverse width from bQ = 480 mm, minimum width lengthwise from bL = 640 mm)
- Stopping on the inside of the WT frame module
- Infinitely adjustable damping
- When the pressure is released by a spring into the lock position
- Can be combined with WT 22/H and WT 2/F-H
- Notice: Combination with WT 2/LS not possible
- The slide stop is used in a transverse section that connects more than two longitudinal sections and that requires supplementary stops
- A lift transverse unit can feed in the workpiece pallet onto the longitudinal section when the slide stop is activated
- When depressurized, the pneumatically adjustable slide stop is extended to the upper end position
- Mounting inside the lift transverse unit HQ 2/C-H
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Bosch Rexroth
- Product ID
- 3842998796
- Condition on delivery
- Not assembled
- ESD
- Yes
- Required compressed air connection [pmax] [bar]
- 6
- Required compressed air connection [pmin] [bar]
- 4
- Operating temperature [T] max
- -20 ... +80 °C
