Product Description

Lifecycle Status:Successor:

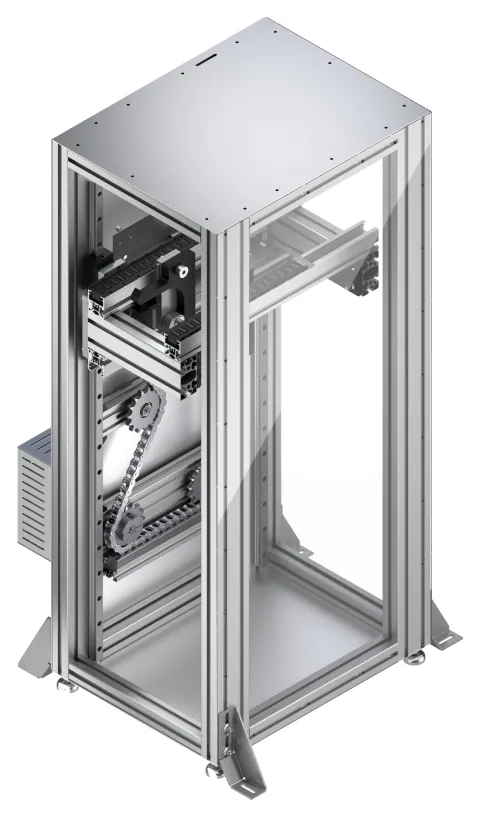

Lift EL 2 - Lift for changing workpiece pallets between two different transport levels - Drive through synchronous servomotor MSM with absolute encoder- Interface: Plug-in connectors for encoder connection and power connection- Electrically released holding brake - Lift for conveying a workpiece pallet vertically from a lower conveying section to a higher conveying section or vice versa - Designed as a head lift - Suitable for use in an EPA - For all workpiece pallet dimensions up to 800 x 800 mm - Lower transportation height possible from 290 mm - Max. total workpiece pallet weight = 60 kg - Short cycle times of up to 7.9 s are possible - Strokes of up to 1500 mm can be achieved - Maintenance hatch for servicing purposes included - Options are available for protective cover material - The product to be transported must not exceed neither bWT nor IWT of the workpiece pallet

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998861
ESD: Yes
Section load in accumulation operation [kg]: 60
Gear motor [GM]: 0 = mit Getriebe, ohne Motor, ohne Kompaktumrichter 1 = mit Getriebe, Motor und Kompaktumrichter
Specific section load [kg/cm]: 1
Min. stroke [mm]: 400
