Bosch Rexroth 3842998930

Name: 3842998930
Brand: Bosch Rexroth
SKU: 3842998930

3842998930

1 / 2

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

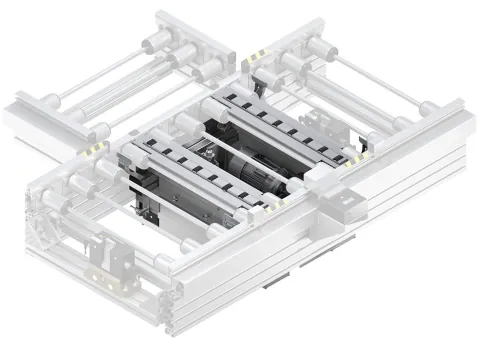

- The lift transverse unit is a module for branching transport. It lifts the workpiece pallet and moves it transversely to the original conveying direction via a driven roller section. - Notice:-This lift transverse unit is delivered without section.- Note the orientation of the workpiece pallet after branching.- When using the interface to SEW, the motor is in the direction of transport before HQ 5. - Can be used with all WT 5 workpiece pallets - The transverse transport level is 4.5 mm above the transport level of the longitudinal section - Protective casing can also be removed in the case of low conveyor heights - Compressed air connection: 5 ... 6 bar - Pneumatic push-in fitting: 6 mm - Drive possible with AB 5

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998930
Nominal speed [vN]: 12 m/min 6 m/min 9 m/min
Gear motor [GM]: 0 = ohne Getriebemotor 1 = mit Getriebemotor
Scope of delivery: Incl. cover on passive or active side depending on the selection of parameter OFD and use of support rollers Incl. guide piece and warning label Incl. protective covers for the lifting mechanism and roller section Incl. support rollers included in all configurations up to bL = 845 mm with p = 130 mm or p = 195 mm, as there are no problems with the conveyor trench Including fastening material for mounting the HQ 5 in conveyor sections ST 5/XH, ST 5/H and in the drive modules AS 5/XH, AS 5/H
Delivery information: Fully assembled

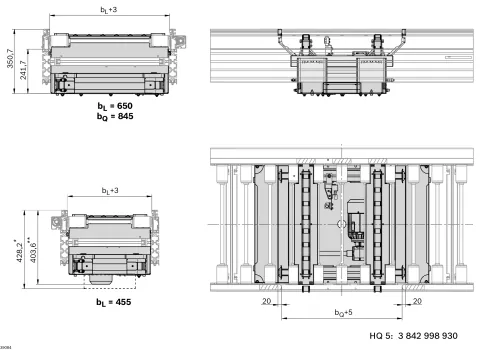

Preferred values [mm]: 1040 455 650 845
