Product Description
Lifecycle Status:Successor:

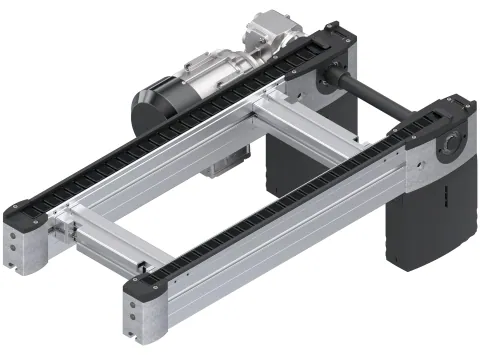

Belt section BS 2/C-100
Functional operation conveyor section complete with drive
- The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
- Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm
- Transverse conveying between parallel conveyor sections
- Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA
- Special models on request
- Use with medium accumulation loads
- The WT 2/LS can be used for longitudinal conveyors with this component
- Cross-traversing and motor mounting in the center (MA = M) is not possible
- Positioning of WTs in the area of the drive heads/return heads is not permitted.
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Bosch Rexroth
- Product ID
- 3842998933
- Condition on delivery
- Assembled
- ESD
- Yes
- Dry room [%rF]
- <1
- Operating temperature [T] max
- +40 °C
- Section load in accumulation operation [kg]
- 100
