Bosch Rexroth 3842998935

Name: 3842998935
Brand: Bosch Rexroth
SKU: 3842998935

3842998935

1 / 3

Reference Image - Not actual item!

Product Description

Lifecycle Status:Successor:

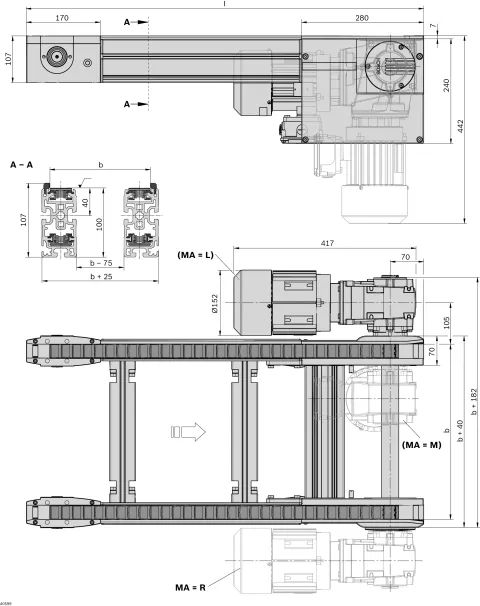

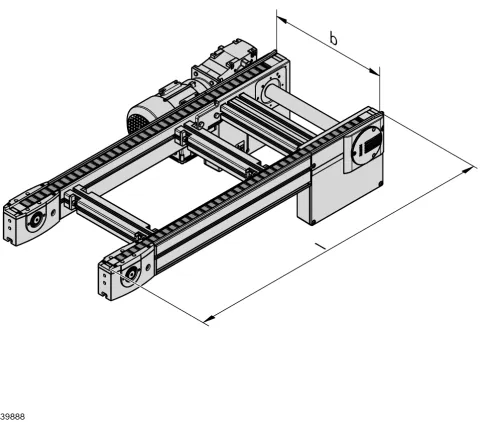

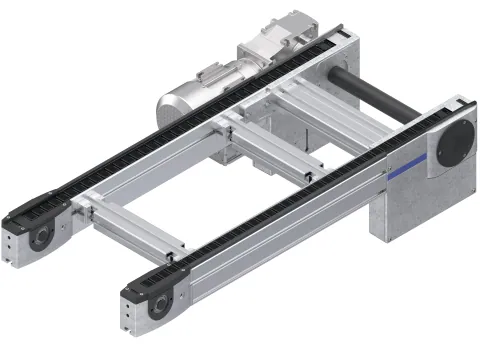

Belt section BS 2/C-H Functional operation conveyor section complete with drive - The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units. - Sturdy design for especially heavy-duty systems - Longitudinal conveying of the workpiece pallet on conveyor sections of up to 6000 mm - Transverse conveying between parallel conveyor sections in conjunction with lift transverse units - Can be combined with WT 2, WT 2/F with wear pad PA, WT 2/LS - Special models on request - Stainless steel workpiece pallet lateral guide - Profile width: 50 mm - Use with high accumulation loads - The WT 2/LS can be used for longitudinal conveyors with this component - Cross-traversing and motor mounting in the center (MA = M) is not possible - Positioning of WTs in the area of the drive heads/return heads is not permitted.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998935
Condition on delivery: Assembled
ESD: Yes
Dry room [%rF]: <1
Section load in accumulation operation [kg]: 400
Nominal speed [vN]: 0 m/min ohne Motor und ohne Getriebe 12 m/min 15 m/min 18 m/min nicht möglich bei f = 60 Hz 6 m/min 9 m/min
