Product Description

Lifecycle Status:Successor:

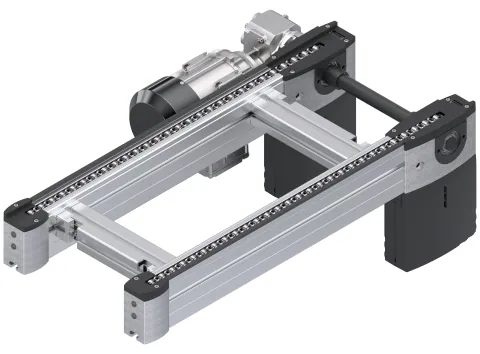

- The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units. - Reversible operation possible for l ≤ 2000 mm and accumulation roller chains without small parts protection - Chain tensioner for reversible operation contained in drive head - Special models on request - Positioning of WTs in the area of the drive heads/return heads is not permitted. - With short, light workpiece pallets (lWT = 160, 240), it may be necessary to ensure that conveyor trenches are traversable by installing the included acceleration element. When doing so, note the following: Avoid accumulation above the acceleration element! Accumulation above the acceleration element causes severe roller wear and shortens the service life of the chain. - Low-maintenance version available - Notice: The low-maintenance version of the accumulation roller chain allows it to be used without additional lubrication for higher requirements in clean environments. In addition, less installation and maintenance effort will be necessary. The service life can vary depending on the application compared to the standard chain.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: Bosch Rexroth
Product ID: 3842998937
Condition on delivery: Assembled
ESD: Yes
Operating temperature [T] max: +40 °C
Glide profile [GP]: 0 = Plastic (max. 1 kg/cm specific section load) 1 = steel
Section load in accumulation operation [kg]: 300
