Product Description
Lifecycle Status:Successor:

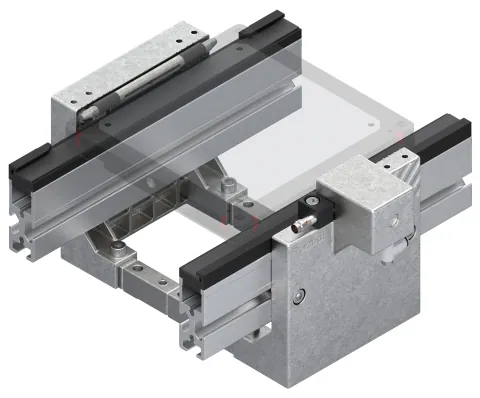

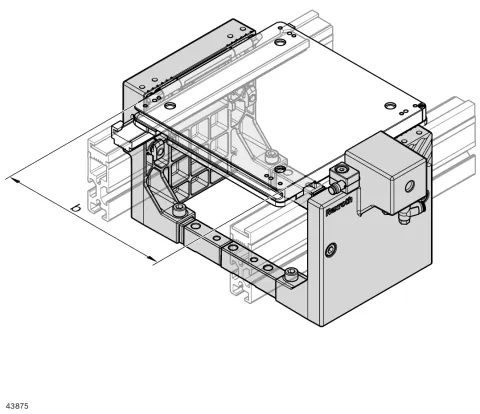

Positioning unit for workpiece pallet TS 1
Precise positioning of a workpiece pallet in a manual or automated processing station
- Repeat accuracy in X- and Y-direction: ± 0.015 mm
- Permissible vertical process force up to 100 N incl. workpiece pallet

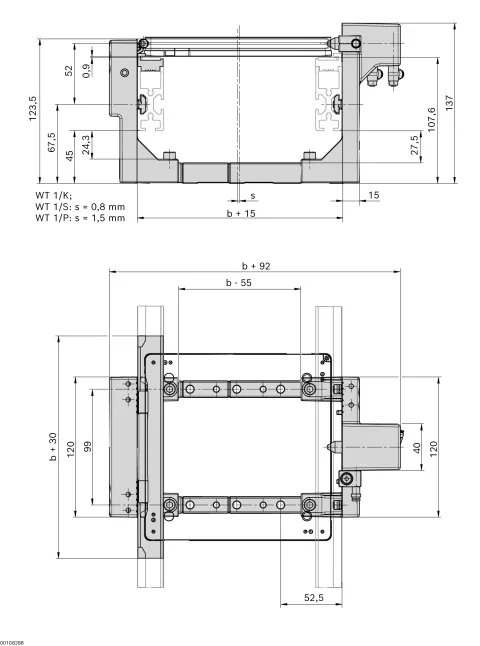

- Can be used with workpiece pallets WT 1/S, WT 1/K and WT 1/P
- Positioning via dowel pin and floating supported shaft on the side of the workpiece pallet
- For the pre-positioning of the workpiece pallet and for the pre-separation, a stop gate VE 1/... must be used in each case
- Assembly without interruption of the section profile under the transport route or on a machine table of an automated station
- Access to the workpiece pallet also possible from below
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- Bosch Rexroth
- Product ID
- 3842998963
- Condition on delivery
- Assembled
- ESD
- Yes
- Dry room [%rF]
- < 1
- Required compressed air connection [pmax] [bar]
- 6
- Required compressed air connection [pmin] [bar]
- 4
